Scanner Comparison

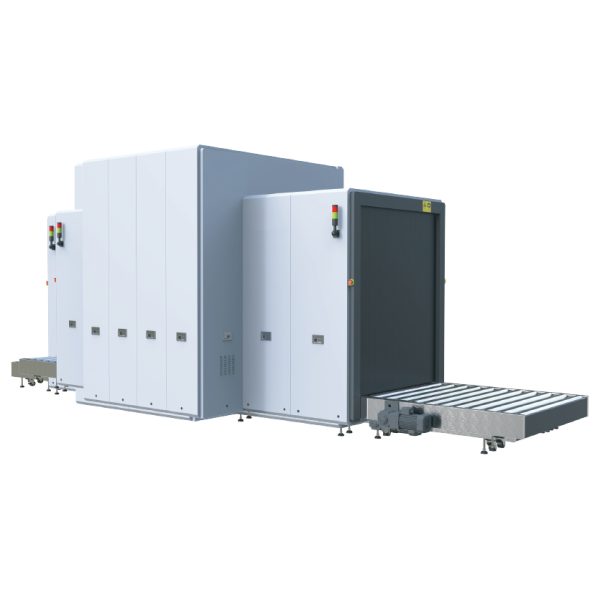

XIS 1517 vs HS1515DV 320
| Spec | Astrophysics XIS 1517 | Hissco International HS1515DV 320 |
|---|---|---|
| Tunnel | ||
| Tunnel Width (mm) | 1502 | 1516 |
| Tunnel Height (mm) | 1702 | 1516 |
| Conveyor | ||
| Conveyor Height (mm) | 383 | 350 |
| Conveyor Speed (m/s) | 0.2 | 0.20 |
| Load Capacity (kg) | 2000 | 3000 |
| Generator | ||
| X-ray Voltage (kV) | 200 | 320 |
| X-ray Current (mA) | 1.0 | 1.0 |
| Generator(s) | 1 | 2 |
| Cooling Type | N/A | Sealed oil cooling |
| Imaging | ||
| View(s) | Single | Dual-View |
| Performance | ||
| Wire Resolution (mm) | 40 AWG Typical, 38 AWG Standard | 38 |
| Steel Penetration (mm) | 52 mm Typical, 50 mm Standard | 75 x 80 |
| Mechanical | ||
| Footprint (L×W×H) (mm) | 7312 x 2591 x 2251 | 7902 x 2523 x 2795 |
| Weight (kg) | 3697 | 3300 |
| Electrical | ||
| Power | 110VAC +/- 10% 50/60Hz, 15 Amp Max; 220 VAC +/- 10% 50/60Hz, 10 Amp Max | 220 VAC / AC 380 V (± to +10%) 50 Hz / 60 Hz ± 3 Hz 1.5 kVA (one mode) or 3 KVA (motorized rollers) |
| Software | ||
| Software / OS | Windows® OS | N/A |
| Options | ||
| Options | Custom Paint, Entry/Exit Roller Tables, Environmental Kit, External USB Ports, Conveyor Capacity Load Increase, Variable Conveyor Speed, Footmat Operator Interlock, Radiation Meter, Remote Workstation Configuration | • Dual Monitors • Ext ended Motorised Roller Conveyors • UPS (Uninterrupted Power Supply) • TIP (Threat Image Protection) |
| Features | XIS 1517 | HS1515DV 320 |
|---|---|---|
| Features | 3 & 6 Color Imaging Black & White Imaging Enhanced Imaging™ Mode High Penetration Function Hold to Preview Imaging Functions Inverse Color Organic/Inorganic Imaging Pseudo Color Reverse Monochrome Atomic Z-Number Measurement Geometric Image Distortion Correction Material Discrimination Real-Time Image Manipulation Auto Image Archiving Image Review Save Image (RGB) Baggage Counter Image Annotation JPEG Conversion Print Image Capable Multi-Tier Accessibility Network Ready Real-Time Self Diagnostics Quadrant Zoom Continuous Scanning Continuous Zoom Up to 64x Vertical Zoom Panning Barcode Scanning Density Alert Local Language Safe Passage® Computer Based Training Screener Assist Software Test Case Threat Image Projection (TIP) Software |
Multi-Energy / high definition detectors Compact Design Ultra-thin object scanning using micro photo sensors Modular Design with self-diagnosis capability Organic/Inorganic Stripping Automatic Threat & Density Alert Network Ready Image Archiving |
