Scanner Comparison

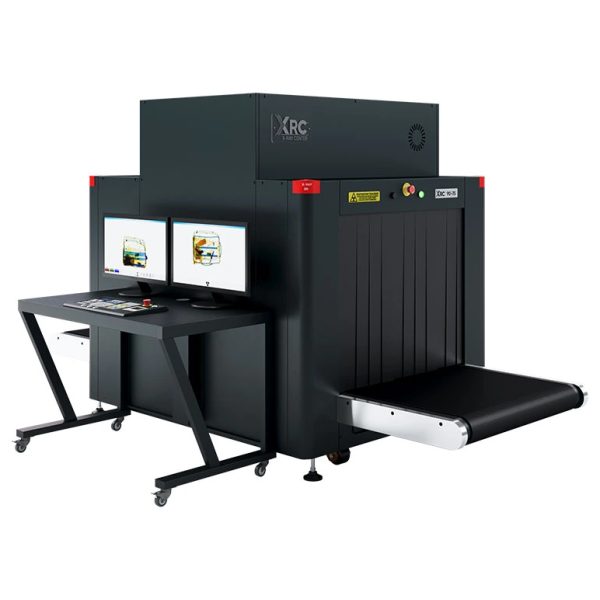

FEP ME 975 vs XRC 90-75
| Spec | Gilardoni FEP ME 975 | X-ray Center XRC 90-75 |
|---|---|---|
| Tunnel | ||
| Tunnel Width (mm) | 906 | 915 |
| Tunnel Height (mm) | 758 | 765 |
| Conveyor | ||
| Conveyor Height (mm) | 371 | 335 |
| Conveyor Speed (m/s) | 0.2 | 0.20 |
| Load Capacity (kg) | 200 | 200 |
| Generator | ||
| X-ray Voltage (kV) | 160 | 160 |
| X-ray Current (mA) | 1 | 1.0 |
| Generator(s) | 1 | 1 |
| Cooling Type | Oil bath and air | Oil and forced air cooling |
| Imaging | ||
| View(s) | Single | Single |
| Performance | ||
| Wire Resolution (mm) | 41 | 38 |
| Steel Penetration (mm) | 35 | 37 |
| Mechanical | ||
| Footprint (L×W×H) (mm) | 2980 x 1242 x 1800 | 2890 x 1325 x 1630 |
| Weight (kg) | 1020 | 840 |
| Electrical | ||
| Power | 230Vac ± 10% 50/60Hz, ≤ 2kVA | 110/220V AC ±10%50/60 Hz, 8A/4A |
| Software | ||
| Software / OS | Linux | Linux |
| Options | ||
| Options | • ADS • AIMS • TIP • NetServer • Rulliere modulari / Modular roller tables • Workstation di 2° livello / 2nd level workstation • Smart-card login • UPS • Alimentazione / Power supply 110Vac - 50/60Hz | N/A |
| Features | FEP ME 975 | XRC 90-75 |
|---|---|---|
| Features | monitor LCD widescreen Beam orientation: diagonal downwards Duty cycle: 100% Leakage dose at 10cm: < 1.0µSv/h (0.1mR/h) Film safety guaranteed up to ISO 1600/33 DIN |
Programmable Function Keys Parcel Counter Date and Time Display Virtual Threat Image Projection (TIP) Organic/Inorganic Threat Alarm Operator Training Program (OTP) UPS (For Computer Supply) Multi Languages Self Diagnosis Generator Timer Automatic Stop Conveyor Bi-Directional Scanning Emergency Stop Buttons Perfect View (Detail Enhancement) (PV) Edge Enhancement (EE) Pseudo Color (PS) Organic Materials (OM) Inorganic Materials (IM) Black & White (B/W) Inverse Colors (IN) High Penetration (HP) Variable Edge Enhancement (+E –E) Variable Density (+D –D) Variable Gamma (+G –G) Variable Color Separation (+C –C) Zoom (64x) Sniper Zoom Recall Previous Images Manual/Automatic Archive Annotated Archive Multi Energy Viewer (4 –6 Color) Atomic Number Display (Z Value) |
