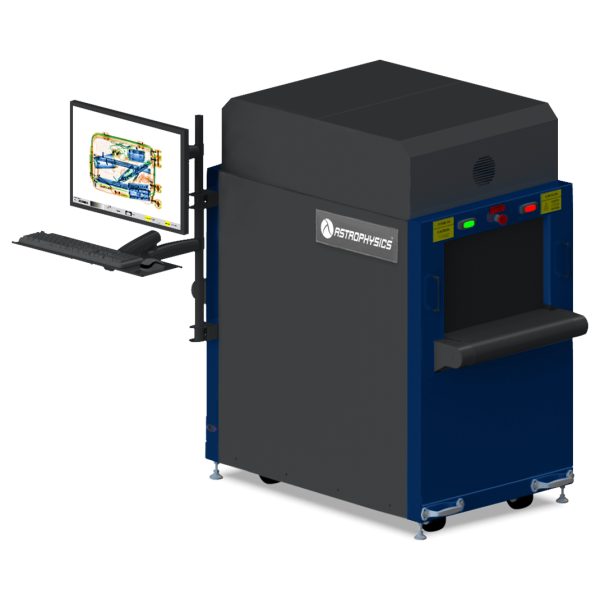

Astrophysics MS 53MD
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
526
Tunnel Height (mm)
346
Conveyor
Conveyor Height (mm)
734
Conveyor Speed (m/s)
0.23
Load Capacity (kg)
45
Generator
X-ray Voltage (kV)
150
X-ray Current (mA)
0.7
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40 AWG Typical, 38 AWG Standard
Steel Penetration (mm)
39 mm Typical, 37 mm Standard
Generator
Cooling Type
Sealed Di-Electric Oil Bath with Forced Air
Mechanical
Footprint (L×W×H) (mm)
2205 x 1446 x 1444
Weight (kg)
240
Electrical
Power
110 VAC +/- 10% 50/60Hz, 15 Amp Max; 220VAC +/- 10% 50/60Hz, 10 Amp Max
Software
Software / OS
Windows® OS
Options
Options
Custom Paint, Detachable Entry/Exit Roller Tables, Environmental Kit, Footmat Operator Interlock, Mobility Kit, Uninterruptible Power Supply (UPS), Conveyor Capacity Load Increase, External USB Ports, Variable Conveyor Speed, Built-in Roller Tables
Features
Features (36)
  • Artificial Intelligence (AI) Capable
  • Color Imaging
  • Enhanced Imaging
  • Black & White Imaging
  • High Penetration Function
  • Hold to Preview Imaging Functions
  • Inverse Color
  • Organic/Inorganic Imaging
  • Pseudo Color
  • Reverse Monochrome
  • Atomic Z-Number Measurement
  • Geometric Image Distortion Correction
  • Material Discrimination
  • Real-Time Image Manipulation
  • Auto Image Archiving
  • Image Review
  • Save Image (RGB)
  • Baggage Counter
  • Rotating Screen
  • JPEG Conversion
  • Multi-Tier Accessibility
  • Print Image Capable
  • Real-Time Self Diagnostics
  • Quadrant Zoom
  • Continuous Scanning
  • Continuous Zoom Up to 64x
  • Vertical Zoom Panning
  • Density Alert
  • Integrated AI Detection
  • Local Language
  • Network Ready
  • Safe Passage®
  • Computer Based Training
  • Screener Assist Software
  • Test Case
  • Threat Image Projection (TIP) Software
