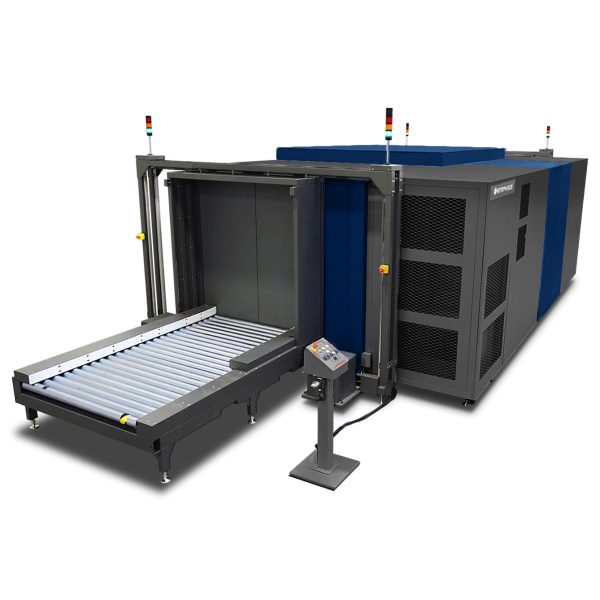

Astrophysics — MVCT
Cargo · Model brochure & technical specifications
Compare MVCT against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1219
Tunnel Height (mm)
1651
Conveyor
Conveyor Height (mm)
1219
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
1600
Generator
X-ray Voltage (kV)
450
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
3D
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
N/A
Steel Penetration (mm)
90 mm Standard
Generator
Cooling Type
Oil Cooling Chiller & Pump
Mechanical
Footprint (L×W×H) (mm)
13311 x 4531 x 2960
Weight (kg)
32500
Electrical
Power
60A, 200-240VAC, 3 Phase
Software
Software / OS
Windows® OS
Options
Options
Additional Operating Modes, Barcode or RFID Readers, Multiplexing, Networking, Palette Queuing System, Conveyor Capacity Load Increase, External USB Ports
Features
Features (10)
- Multi-view x-ray
- high-speed CT
- D reconstructions
- ° views
- X power and 6X resolution of conventional cargo systems
- computed tomography mode
- full 360º image rotation
- scrollable slice images
- variable atomic number imaging
- variable density imaging
