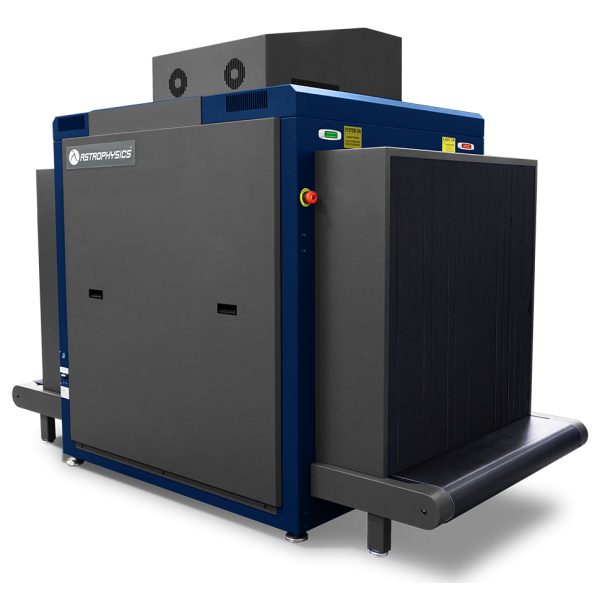

Astrophysics XIS 100XD
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1009
Tunnel Height (mm)
1000
Conveyor
Conveyor Height (mm)
300
Conveyor Speed (m/s)
0.23
Load Capacity (kg)
220
Generator
X-ray Voltage (kV)
165
X-ray Current (mA)
1.2
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40 AWG Typical, 38 AWG Standard
Steel Penetration (mm)
37 mm Typical, 35 mm Standard
Generator
Cooling Type
Sealed Di-Electric Oil Bath with Forced Air
Mechanical
Footprint (L×W×H) (mm)
2395 x 1275 x 1910
Weight (kg)
794
Electrical
Power
110VAC +/- 10% 50/60Hz, 15 Amp Max; 220 VAC +/- 10% 50/60Hz, 10 Amp Max
Software
Software / OS
Windows® OS
Options
Options
Conveyor Capacity Load Increase, External USB Ports, Variable Conveyor Speed, Footmat Operator Interlock, Roller Bed, Internal/External UPS, Mobility Kit, Radiation Meter, Remote Workstation Configuration, Custom Paint, Entry/Exit Roller Tables, Environmental Kit
Features
Features (40)
  • Artificial Intelligence (AI)
  • Enhanced Imaging™
  • Slim Profile Maintains Minimal Footprint
  • Repositioned Generator and Low Conveyor
  • & 6 Color Imaging
  • Black/White Imaging
  • High Penetration Function
  • Hold to Preview Imaging Functions
  • Inverse Color
  • Organic/Inorganic Imaging
  • Pseudo Color
  • Real-Time Image Manipulation
  • Reverse Monochrome
  • Atomic Z-Number Measurement
  • Geometric Image Distortion Correction
  • Material Discrimination
  • Auto Image Archiving
  • Image Review
  • Save Image (RGB)
  • Baggage Counter
  • Image Annotation
  • JPEG Conversion
  • Multi-Tier Accessibility
  • Network Ready
  • Print Image Capable
  • Real-Time Self Diagnostics
  • Quadrant Zoom
  • Continuous Scanning
  • Continuous Zoom Up to 64x
  • Vertical Zoom Panning
  • Barcode Scanning
  • Density Alert
  • Local Language
  • Safe Passage®
  • Computer Based Training
  • Screener Assist Software
  • Test Case
  • Threat Image Projection (TIP) Software
  • Central Management System Integration
  • Multiplexing
