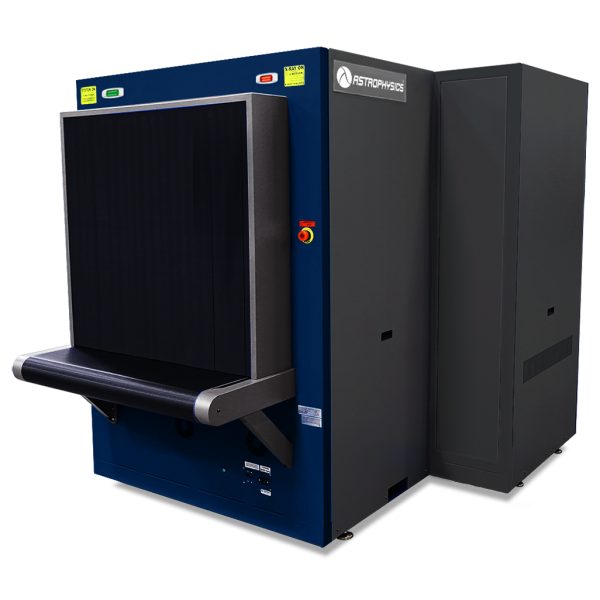

Astrophysics XIS 100XDV
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1003
Tunnel Height (mm)
1001
Conveyor
Conveyor Height (mm)
768
Conveyor Speed (m/s)
0.23
Load Capacity (kg)
220
Generator
X-ray Voltage (kV)
165
X-ray Current (mA)
1.2
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40 AWG Typical, 38 AWG Standard
Steel Penetration (mm)
39 mm Typical, 37 mm Standard
Generator
Cooling Type
Sealed Di-Electric Oil Bath with Forced Air
Mechanical
Footprint (L×W×H) (mm)
3031 x 1766 x 1978
Weight (kg)
1565
Electrical
Power
110VAC +/- 10% 50/60Hz, 20 Amp Max; 220 VAC +/- 10% 50/60Hz, 15 Amp Max
Software
Software / OS
Windows® OS
Options
Options
Power Conditioner: Uninterrupted Power Supply (UPS) (Computer Operation), Conveyor Capacity Load Increase, External USB Ports, Variable Conveyor Speed, Custom Paint, Entry/Exit Roller Tables, Environmental Kit, Sloped Conveyor, Footmat Operator Interlock, Roller Bed, Radiation Meter, Remote Workstation Configuration, Artificial Intelligence (AI)
Features
Features (40)
  • Artificial Intelligence (AI)
  • Enhanced Imaging™
  • Modular Design
  • Dual 180kV Generators
  • & 6 Color Imaging
  • Black & White Imaging
  • High Penetration Function
  • Hold to Preview Imaging Functions
  • Inverse Color
  • Organic/Inorganic Imaging
  • Pseudo Color
  • Reverse Monochrome
  • Atomic Z-Number Measurement
  • Geometric Image Distortion Correction
  • Material Discrimination
  • Real-Time Image Manipulation
  • Auto Image Archiving
  • Image Review
  • Save Image (RGB)
  • Baggage Counter
  • Image Annotation
  • JPEG Conversion
  • Print Image Capable
  • Multi-Tier Accessibility
  • Network Ready
  • Real-Time Self Diagnostics
  • Quadrant Zoom
  • Continuous Scanning
  • Continuous Zoom Up to 64x
  • Vertical Zoom Panning
  • Barcode Scanning
  • Density Alert
  • Local Language
  • Safe Passage®
  • Computer Based Training
  • Screener Assist Software
  • Test Case
  • Threat Image Projection (TIP) Software
  • Central Management System Integration
  • Multiplexing
