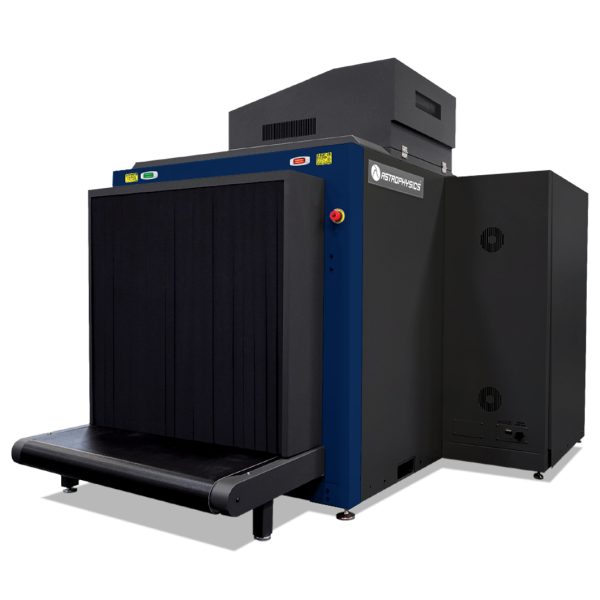

Astrophysics XIS 100XDX
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1009
Tunnel Height (mm)
1001
Conveyor
Conveyor Height (mm)
30
Conveyor Speed (m/s)
0.23
Load Capacity (kg)
220
Generator
X-ray Voltage (kV)
165
X-ray Current (mA)
1.0
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40 AWG Typical, 38 AWG Standard
Steel Penetration (mm)
37 mm Typical, 35 mm Standard35
Generator
Cooling Type
Sealed Di-Electric Oil Bath with Forced Air
Mechanical
Footprint (L×W×H) (mm)
3138 x 1832 x 1886
Weight (kg)
1605
Electrical
Power
110VAC +/- 10% 50/60Hz, 20 Amp Max; 220 VAC +/- 10% 50/60Hz, 15 Amp Max
Software
Software / OS
Windows® OS
Options
Options
Custom Paint, Entry/Exit Roller Tables, Environmental Kit, Footmat Operator Interlock, Roller Bed, Radiation Meter, Remote Workstation Configuration, External USB Ports, Conveyor Capacity Load Increases, Variable Conveyor Speed
Features
Features (39)
  • Artificial Intelligence (AI) Enhanced Imaging™
  • Dual-View X-Ray Generators with Detachable Modular Design
  • Repositioned Generator and Low Conveyor Height
  • & 6 Color Imaging
  • Black & White Imaging
  • Enhanced Imaging™
  • High Penetration Function
  • Hold to Preview Imaging Functions
  • Inverse Color
  • Organic/Inorganic Imaging
  • Pseudo Color
  • Reverse Monochrome
  • Atomic Z-Number Measurement
  • Geometric Image Distortion Correction
  • Material Discrimination
  • Real-Time Image Manipulation
  • Auto Image Archiving
  • Image Review
  • Save Image (RGB)
  • Baggage Counter
  • Image Annotation
  • JPEG Conversion
  • Multi-Tier Accessibility
  • Network Ready
  • Print Image Capable
  • Real-Time Self Diagnostics
  • Quadrant Zoom
  • Continuous Scanning
  • Continuous Zoom Up to 64x
  • Vertical Zoom Panning
  • Barcode Scanning
  • Density Alert
  • Local Language
  • Safe Passage® Computer Based Training
  • Screener Assist Software
  • Test Case
  • Threat Image Projection (TIP) Software
  • Central Management System Integration
  • Multiplexing
