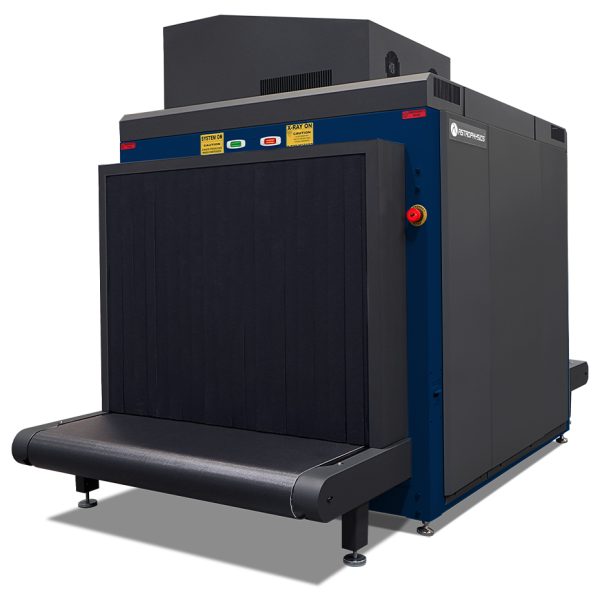

Astrophysics XIS 1080D
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1016
Tunnel Height (mm)
800
Conveyor
Conveyor Height (mm)
300
Conveyor Speed (m/s)
0.23
Load Capacity (kg)
220
Generator
X-ray Voltage (kV)
165
X-ray Current (mA)
1.2
Generator(s)
2
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40 AWG Typical, 38 AWG Standard
Steel Penetration (mm)
37 mm Typical, 35 mm Standard35
Generator
Cooling Type
Sealed Di-Electric Oil Bath with Forced Air
Mechanical
Footprint (L×W×H) (mm)
2422 x 1275 x 1714
Weight (kg)
912
Electrical
Power
110VAC +/- 10%, 50/60Hz, 15 Amp Max; 220VAC +/- 10% 50/60Hz, 10 Amp Max
Software
Software / OS
Windows® OS
Options
Options
Conveyor Capacity Load Increase, External USB Ports, Variable Conveyor Speed, Custom Paint, Entry/Exit Roller Tables, Environmental Kit, Footmat Operator Interlock, Internal/External UPS, Radiation Meter, Remote Workstation Configuration
Features
Features (38)
  • 3 & 6 Color Imaging
  • Black & White Imaging
  • Enhanced Imaging™
  • High Penetration Function
  • Hold to Preview Imaging Functions
  • Inverse Color
  • Organic/Inorganic Imaging
  • Pseudo Color
  • Reverse Monochrome
  • Atomic Z-Number Measurement
  • Geometric Image Distortion Correction
  • Material Discrimination
  • Real-Time Image Manipulation
  • Auto Image Archiving
  • Image Review
  • Save Image (RGB)
  • Baggage Counter
  • Image Annotation
  • JPEG Conversion
  • Print Image Capable
  • Multi-Tier Accessibility
  • Network Ready
  • Real-Time Self Diagnostics
  • Quadrant Zoom
  • Continuous Scanning
  • Continuous Zoom Up to 64x
  • Vertical Zoom Panning
  • Artificial Intelligence (AI)
  • Barcode Scanning
  • Density Alert
  • Local Language
  • Safe Passage®
  • Computer Based Training
  • Screener Assist Software
  • Test Case
  • Threat Image Projection (TIP) Software
  • Central Management System Integration
  • Multiplexing
