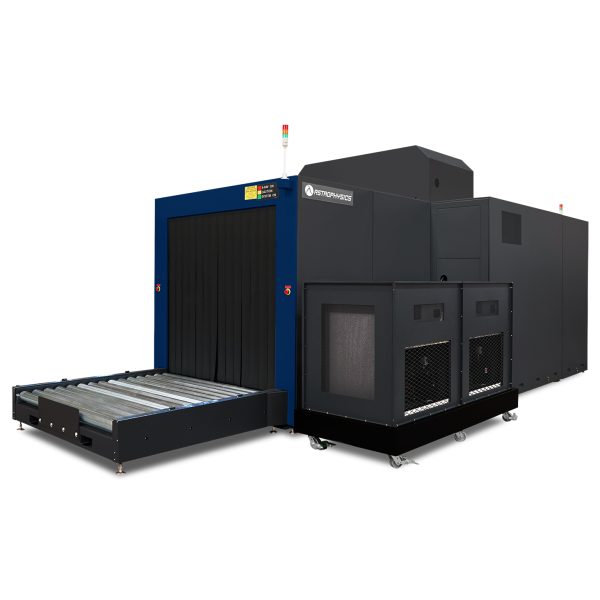

Astrophysics — XIS 1818DV 320kV
Cargo · Model brochure & technical specifications
Compare XIS 1818DV 320kV against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1810
Tunnel Height (mm)
1805
Conveyor
Conveyor Height (mm)
381
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
3000
Generator
X-ray Voltage (kV)
320
X-ray Current (mA)
7.0
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40 AWG Typical, 38 AWG Standard
Steel Penetration (mm)
80 mm Typical, 75 mm Standard
Generator
Cooling Type
Integrated Cooler Unit with Forced Air
Mechanical
Footprint (L×W×H) (mm)
10694 x 3105 x 3143
Weight (kg)
16000
Electrical
Power
220VAC +/- 10%, 50/60Hz, 100 Amp Min.
Software
Software / OS
Windows® OS
Options
Options
Conveyor Capacity Load Increase, External USB Ports, Variable Conveyor Speed, Custom Paint, Entry/Exit Roller Tables, Environmental Kit, Footmat Operator Interlock, Radiation Meter, Remote Workstation Configuration
Features
Features (40)
- Field Proven Reliability
- AWG Wire Resolution
- kV Generator
- mm Steel Penetration
- Enhanced Imaging
- & 6 Color Imaging
- Black & White Imaging
- Enhanced Imaging
- High Penetration Function
- Hold to Preview Imaging Functions
- Inverse Color
- Organic/Inorganic Imaging
- Pseudo Color
- Reverse Monochrome
- Atomic Z-Number Measurement
- Geometric Image Distortion Correction
- Material Discrimination
- Real-Time Image Manipulation
- Auto Image Archiving
- Image Review
- Manual Bitmap Archive
- Baggage Counter
- Image Annotation
- Multi-Tier Accessibility
- Network Ready
- Print Image Capable
- Real-Time Self Diagnostics
- Quadrant Zoom
- Continuous Scanning
- Continuous Zoom Up to 64x
- Vertical Zoom Panning
- Barcode Scanning
- Computer Based Training (CBT)
- Density Alert
- Local Language
- Safe Passage
- Computer Based Training
- Screener Assist Software
- Test Case
- Threat Image Projection (TIP) Software
