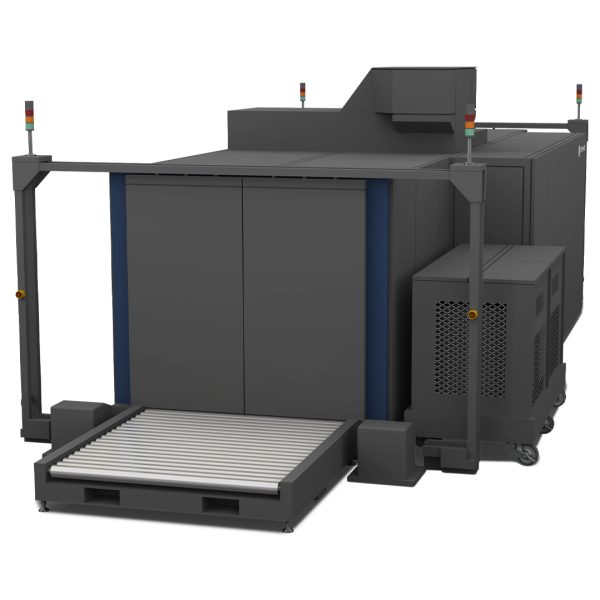

Astrophysics — XIS 1818DV 450kV
Cargo · Model brochure & technical specifications
Compare XIS 1818DV 450kV against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1814
Tunnel Height (mm)
1806
Conveyor
Conveyor Height (mm)
350
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
3000
Generator
X-ray Voltage (kV)
450
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
32 AWG Typical, 28 AWG Standard
Steel Penetration (mm)
110 mm Typical, 100 mm Standard
Generator
Cooling Type
Integrated Cooler Unit with Forced Air
Mechanical
Footprint (L×W×H) (mm)
12177 x 4432 x 3226
Weight (kg)
N/A
Electrical
Power
3 Phase, 220VAC ± 10%, 50/60Hz, 50 Amp Min.
Software
Software / OS
Windows® OS
Options
Options
Conveyor Capacity Load Increase, External USB Ports, Variable Conveyor Speed, Custom Paint, Entry/Exit Roller Tables, Environmental Kit, Footmat Operator Interlock, Radiation Meter, Remote Workstation Configuration
Features
Features (35)
- 3 & 6 Color Imaging
- Black & White Imaging
- Enhanced Imaging™ Mode
- High Penetration Function
- Hold to Preview Imaging Functions
- Inverse Color
- Organic/Inorganic Imaging
- Pseudo Color
- Reverse Monochrome
- Atomic Z-Number Measurement
- Geometric Image Distortion Correction
- Material Discrimination
- Real-Time Image Manipulation
- Auto Image Archiving
- Image Review
- Save Image (RGB)
- Baggage Counter
- Image Annotation
- JPEG Conversion
- Print Image Capable
- Multi-Tier Accessibility
- Network Ready
- Real-Time Self Diagnostics
- Quadrant Zoom
- Continuous Scanning
- Continuous Zoom Up to 64x
- Vertical Zoom Panning
- Barcode Scanning
- Density Alert
- Local Language
- Safe Passage®
- Computer Based Training
- Screener Assist Software
- Test Case
- Threat Image Projection (TIP) Software
