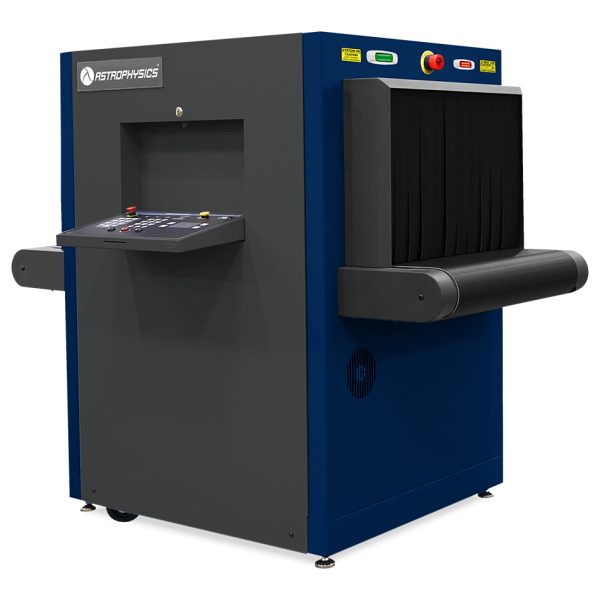

Astrophysics XIS-6040N
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
600
Tunnel Height (mm)
400
Conveyor
Conveyor Height (mm)
809
Conveyor Speed (m/s)
0.23
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
150
X-ray Current (mA)
0.7
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40 AWG Typical, 38 AWG Standard
Steel Penetration (mm)
39 mm Typical, 37 mm Standard
Generator
Cooling Type
Sealed Di-Electric bath with Forced Air
Mechanical
Footprint (L×W×H) (mm)
1412 x 809 x 1337
Weight (kg)
420
Electrical
Power
110 VAC +/- 10% 50/60Hz, 15 Amp Max; 220 VAC +/- 10% 50/60Hz, 10 Amp Max
Software
Software / OS
Windows® OS
Options
Options
Conveyor Capacity Load Increase, External USB Ports, LED Upgrade, Touchscreen, Variable Conveyor Speed, Custom Paint, Environmental Kit, Internal/External UPS, Radiation Meter
Features
Features (39)
  • Artificial Intelligence (AI)
  • Enhanced Imaging
  • Narrowed Frame for Tight Spaces
  • Real-Time Diagnostics
  • 8 & 6 Color Imaging
  • Black & White Imaging
  • Enhanced Imaging Mode
  • High Penetration Function
  • Hold to Preview Imaging Functions
  • Inverse Color
  • Organic/Inorganic Imaging
  • Pseudo Color
  • Reverse Monochrome
  • Atomic Z-Number Measurement
  • Material Discrimination
  • Geometric Image Distortion Correction
  • Real-Time Image Manipulation
  • Auto Image Archiving
  • Image Review
  • Save Image (RGB)
  • Baggage Counter
  • Image Annotation
  • JPEG Conversion
  • Print Image Capable
  • Multi-Tier Accessibility
  • Network Ready
  • Real-Time Self Diagnostics
  • Quadrant Zoom
  • Continuous Scanning
  • Continuous Zoom Up to 64x
  • Vertical Zoom Panning
  • Barcode Scanning
  • Density Alert
  • Local Language
  • Safe Passage
  • Computer Based Training
  • Screener Assist Software
  • Test Case
  • Threat Image Projection (TIP) Software
