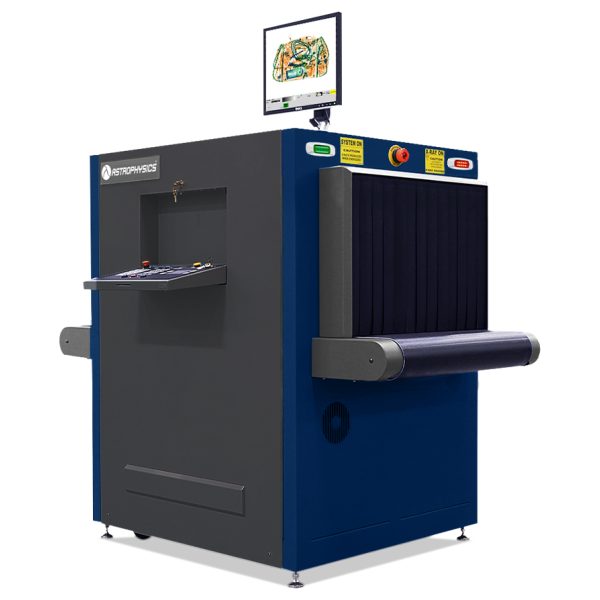

Astrophysics — XIS 6545
Checkpoint · Model brochure & technical specifications
Compare XIS 6545 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
650
Tunnel Height (mm)
451
Conveyor
Conveyor Height (mm)
719
Conveyor Speed (m/s)
0.23 x 23
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
150
X-ray Current (mA)
0.7
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40 AWG Typical, 38 AWG Standard
Steel Penetration (mm)
39 mm Typical, 37 mm Standard
Generator
Cooling Type
Sealed Di-Electric Oil Bath with Forced Air
Mechanical
Footprint (L×W×H) (mm)
1534 x 837 x 1305
Weight (kg)
476
Electrical
Power
110 VAC +/- 10% 50/60Hz, 15 Amp Max; 220VAC +/- 10% 50/60Hz, 10 Amp Max
Software
Software / OS
Windows® OS
Options
Options
Conveyor Capacity Load Increase, External USB Ports, Motorized Rollers
Features
Features (40)
- Artificial Intelligence (AI)
- Color Imaging
- Enhanced Imaging
- Optimum Tunnel Size for Efficient Bag Scanning
- Proven Field Reliability
- & 6 Color Imaging
- Black & White Imaging
- High Penetration Function
- Hold to Preview Imaging Functions
- Inverse Color
- Organic/Inorganic Imaging
- Pseudo Color
- Reverse Monochrome
- Atomic Z-Number Measurement
- Material Discrimination
- Geometric Image Distortion Correction
- Real-Time Image Manipulation
- Auto Image Archiving
- Image Review
- Save Image (RGB)
- Baggage Counter
- Image Annotation
- JPEG Conversion
- Print Image Capable
- Multi-Tier Accessibility
- Network Ready
- Real-Time Self Diagnostics
- Quadrant Zoom
- Continuous Scanning
- Continuous Zoom Up to 64x
- Vertical Zoom Panning
- Barcode Scanning
- Density Alert
- Local Language
- Safe Passage®
- Computer Based Training
- Screener Assist Software
- Test Case
- Threat Image Projection (TIP) Software
- ? Flat Panel Monitor
