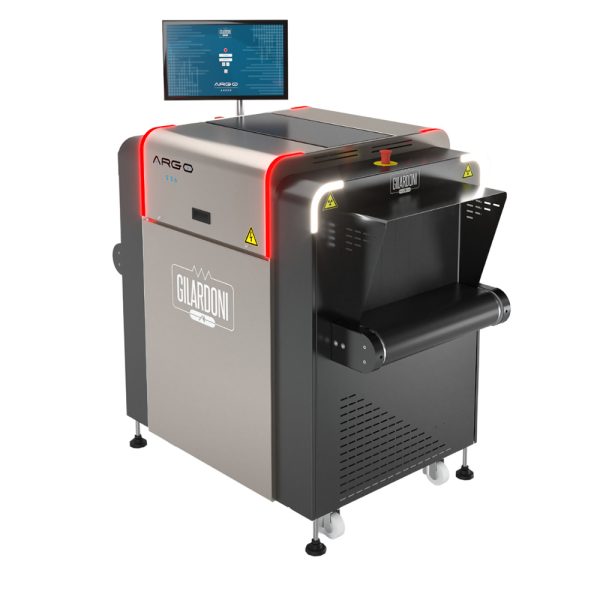

Gilardoni — ARGO 536
Mail and Small Parcel · Model brochure & technical specifications
Compare ARGO 536 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
530
Tunnel Height (mm)
330
Conveyor
Conveyor Height (mm)
712
Conveyor Speed (m/s)
0.3
Load Capacity (kg)
205
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
0.5
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
42
Steel Penetration (mm)
40
Generator
Cooling Type
Oil bath and air
Mechanical
Footprint (L×W×H) (mm)
1364 x 800 x 1190
Weight (kg)
350
Electrical
Power
230Vac ± 10% 50/60Hz, ≤ 2kVA
Software
Software / OS
Linux
Options
Options
• Rulliere modulari / Modular rollers • TIP software • ADS - Automatic Detection Sofware • Multiplexing – Remote multi image analysis • Netserver – Equipment management system • Stand alone solution (see dedicated datasheet) • UPS • Alimentazione / Power supply 110 Vac - 50/60 Hz • Console
Features
Features (0)
N/A
