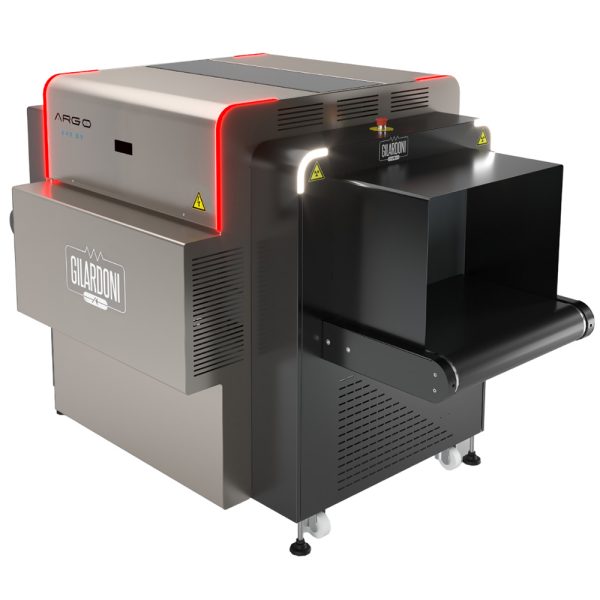

Gilardoni ARGO 640 DV
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
620
Tunnel Height (mm)
420
Conveyor
Conveyor Height (mm)
710
Conveyor Speed (m/s)
0.3
Load Capacity (kg)
205
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
0.5
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
42
Steel Penetration (mm)
40
Generator
Cooling Type
Oil bath and air
Mechanical
Footprint (L×W×H) (mm)
2274 x 1214 x 1335
Weight (kg)
490
Electrical
Power
230 Vac ± 10% 50/60 Hz
Software
Software / OS
Linux
Options
Options
• Rulliere modulari / Modular rollers • TIP software • ADS - Automatic Detection Sofware • Multiplexing – Remote multi image analysis • Netserver – Equipment management system • UPS • Alimentazione / Power supply 110 Vac - 50/60 Hz
Features
Features (7)
  • Peso più basso del mercato
  • Manutenzione immediata e intuitiva
  • Funzione BEST image
  • Penetrazione acciaio maggiorata
  • Predisposizione Multiplexing
  • Compatibile con Tray Return System
  • Velocità nastro variabile
