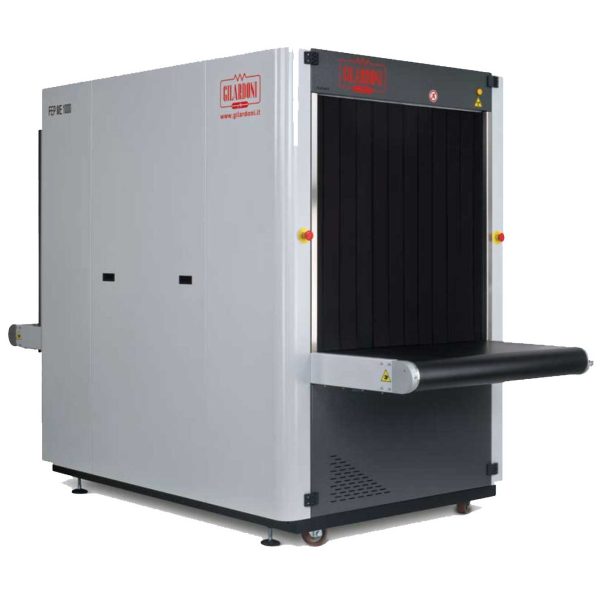

Gilardoni FEP ME 1000 HC
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1006
Tunnel Height (mm)
1010
Conveyor
Conveyor Height (mm)
790
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
2
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
37
Generator
Cooling Type
Oil bath and air
Mechanical
Footprint (L×W×H) (mm)
2980 x 1335 x 1975
Weight (kg)
1120
Electrical
Power
230Vac ± 10% 50/60Hz, Power absorption: 1,5kVA
Software
Software / OS
Linux
Options
Options
• ADS • AIMS • TIP • NetServer • Rulliere modulari / Modular roller tables • Workstation di 2° livello / 2nd level workstation • Smart-card login • UPS • Alimentazione / Power supply 110Vac - 50/60Hz
Features
Features (3)
  • monitor LCD widescreen
  • Beam orientation: diagonal upwards
  • Duty cycle: 100%
