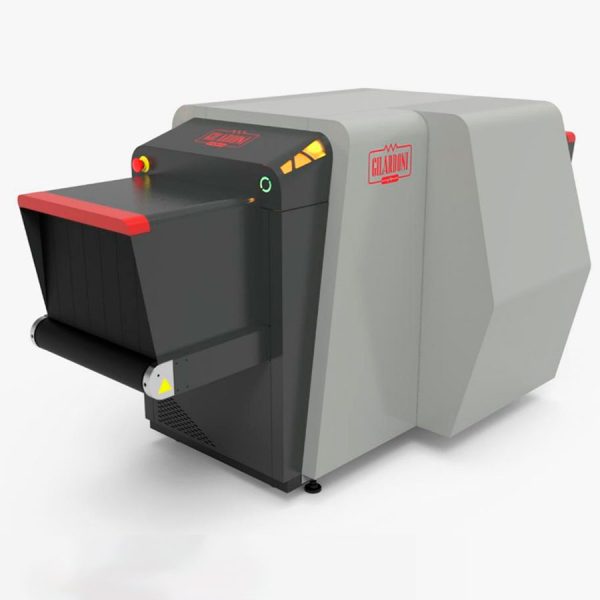

Gilardoni FEP ME 640 AMX
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
606
Tunnel Height (mm)
405
Conveyor
Conveyor Height (mm)
690
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
150
X-ray Current (mA)
0.5
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
35
Generator
Cooling Type
Oil bath and air
Mechanical
Footprint (L×W×H) (mm)
2500 x 1250 x 1365
Weight (kg)
850
Electrical
Power
230 Vac ±10% 50/60 Hz, Power consumption: 2 kW (max)
Software
Software / OS
Linux
Options
Options
• Rulliere modulari / Modular rollers • TIP software • ADS Automatic Detection Sofware • Multiplexing Remote multi image analysis • Netserver Equipment management system • EDSCB C1 software • LEDS software • Touch screen monitor • Stand alone solution • UPS • Alimentazione / Power supply 110 Vac 50/60 Hz
Features
Features (5)
  • Ultramodern design
  • New LED light system
  • Compatible with Tray Return System
  • Double view technology
  • Incredible image quality
