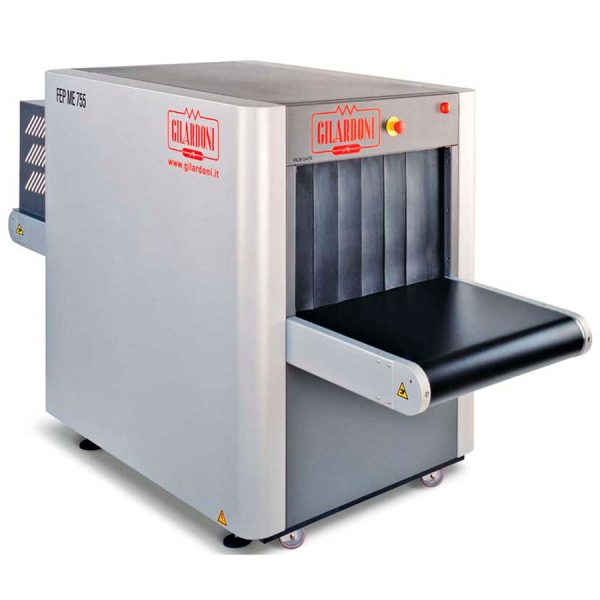

Gilardoni — FEP ME 755
Checkpoint · Model brochure & technical specifications
Compare FEP ME 755 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
756
Tunnel Height (mm)
550
Conveyor
Conveyor Height (mm)
736
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
150
X-ray Current (mA)
0.7
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
34
Generator
Cooling Type
Oil bath and air
Mechanical
Footprint (L×W×H) (mm)
2630 x 1070 x 1462
Weight (kg)
690
Electrical
Power
230Vac ± 10% 50/60Hz, ≤ 1,5kVA
Software
Software / OS
Linux
Options
Options
ADS • AIMS • TIP • NetServer • Rulliere modulari / Modular roller tables • Workstation di 2° livello / 2nd level workstation • Smart-card login • UPS • Alimentazione / Power supply 110Vac - 50/60Hz
Features
Features (5)
- monitor LCD widescreen
- Duty cycle: 100%
- Beam orientation: diagonal upwards
- Leakage dose at 10cm: < 1.0µSv/h (0.1mR/h)
- Film safety guaranteed up to ISO 1600/33 DIN
