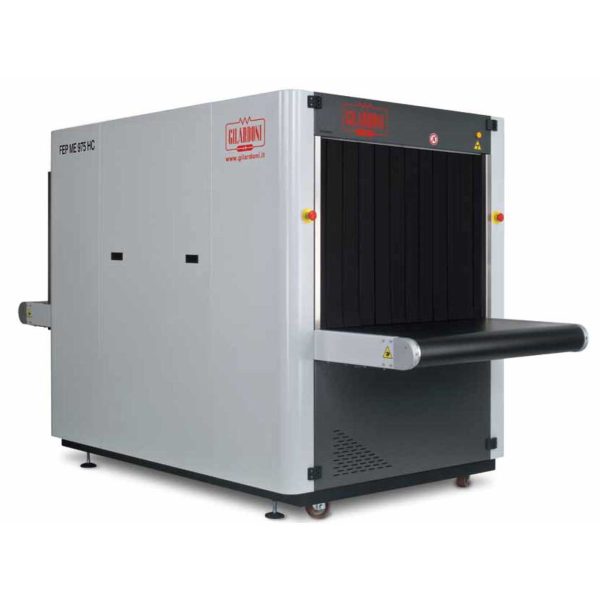

Gilardoni FEP ME 975 HC
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
906
Tunnel Height (mm)
760
Conveyor
Conveyor Height (mm)
788
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1.5
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
35
Generator
Cooling Type
Oil bath and air
Mechanical
Footprint (L×W×H) (mm)
2980 x 1235 x 1725
Weight (kg)
1020
Electrical
Power
230Vac ± 10% 50/60Hz, ≤ 2kVA
Software
Software / OS
Linux
Options
Options
• ADS • AIMS • TIP • NetServer • Rulliere modulari / Modular roller tables • Workstation di 2° livello / 2nd level workstation • Smart-card login • UPS • Alimentazione / Power supply 110Vac - 50/60Hz
Features
Features (3)
  • monitor LCD widescreen
  • Duty cycle: 100%
  • Beam orientation: diagonale verso l'alto
