Gilardoni — FEP ME CARGO

Cargo · Model brochure & technical specifications

Back to X-Compare
Compare FEP ME CARGO against 209 other scanners Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
vs X-ray Center XRC 180-180DV 320KV vs Astrophysics XIS 1818 vs Astrophysics XIS 1818DV
Open X-Compare

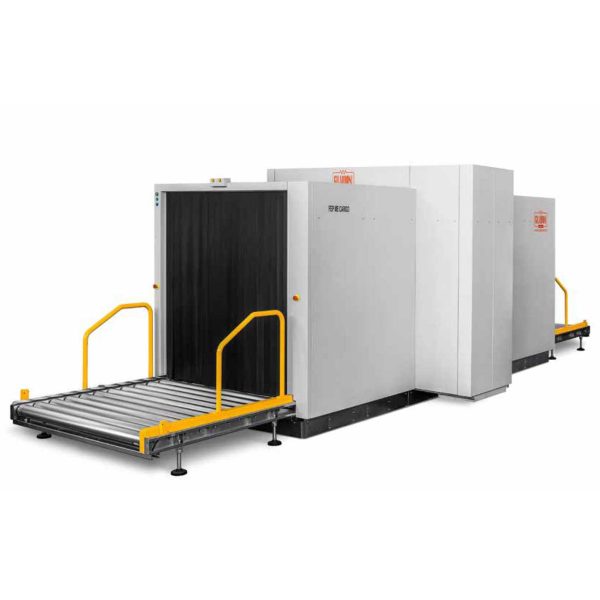

Gilardoni FEP ME CARGO
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1800
Tunnel Height (mm)
1800
Conveyor
Conveyor Height (mm)
330
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
3000
Generator
X-ray Voltage (kV)
200
X-ray Current (mA)
1.5
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
50
Generator
Cooling Type
Oil bath and air
Mechanical
Footprint (L×W×H) (mm)
7500 x 3080 x 2460
Weight (kg)
4300
Electrical
Power
380Vac ± 10% 50/60Hz, Power absorption: 5kVA
Software
Software / OS
Linux
Options
Options
• ADS • AIMS • TIP • NetServer • Workstation di 2° livello / 2nd level workstation • Smart-card login • UPS • Alimentazione / Power supply 110Vac - 50/60Hz
Features
Features (0)
N/A
