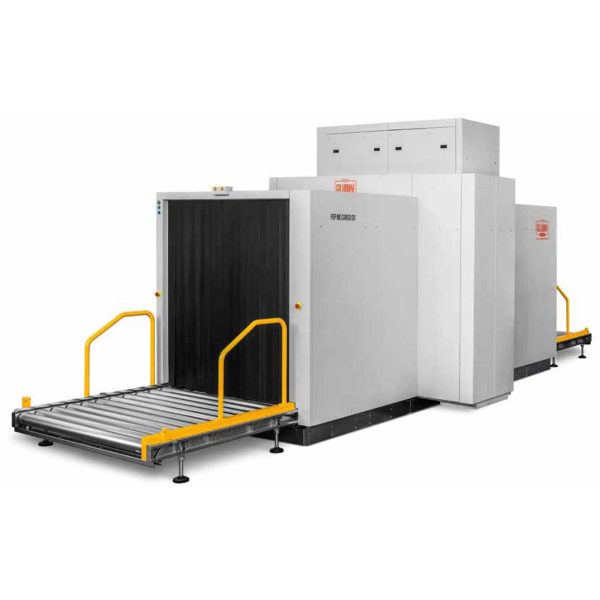

Gilardoni FEP ME CARGO DV
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1800
Tunnel Height (mm)
1800
Conveyor
Conveyor Height (mm)
330
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
3000
Generator
X-ray Voltage (kV)
200
X-ray Current (mA)
1.5
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
50
Generator
Cooling Type
Oil bath and air
Mechanical
Footprint (L×W×H) (mm)
8400 x 3080 x 3150
Weight (kg)
5500
Electrical
Power
380Vac ± 10% 50/60Hz, Power absorption: 5kVA
Software
Software / OS
Linux
Options
Options
• ADS • AIMS • TIP • NetServer • Workstation di 2° livello / 2nd level workstation • Smart-card login • UPS • Alimentazione / Power supply 110Vac - 50/60Hz
Features
Features (3)
  • monitors LCD widescreen
  • Beam orientation: lateral and diagonal downward
  • Duty cycle: 100%
