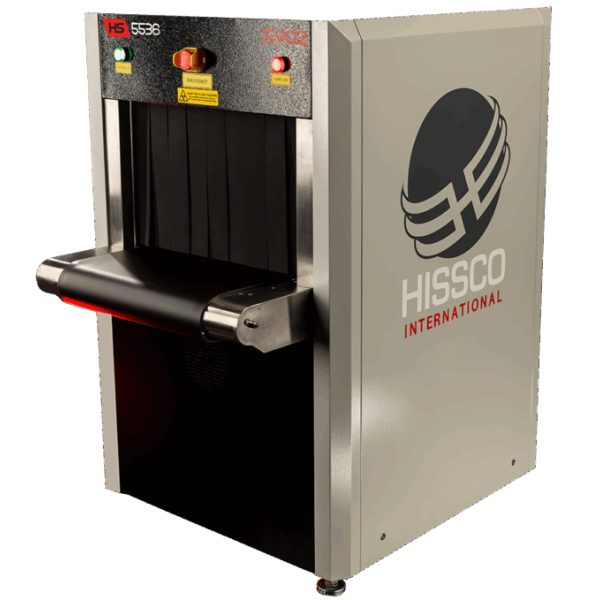

Hissco International — HS5536 EVO2
Mail and Small Parcel · Model brochure & technical specifications
Compare HS5536 EVO2 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
550
Tunnel Height (mm)
360
Conveyor
Conveyor Height (mm)
693
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1.2
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
42
Steel Penetration (mm)
38
Generator
Cooling Type
Sealed oil cooling
Mechanical
Footprint (L×W×H) (mm)
1199 x 728 x 1197
Weight (kg)
250
Electrical
Power
AC 220V (± to 10%) 50 Hz / 60 Hz ± 3 Hz 0.5 kVA
Software
Software / OS
N/A
Options
Options
• AI (Assisted Imaging)™ Item Recognition • Roller tables (entry/exit) built to any length • UPS (Uninterrupted Power Supply) • Touch Screen Interface 21”Monitor • Tunnel Guards • Extended Belt Speed to 0.50 M/S
Features
Features (10)
- 5 Years X-Ray Generator Warranty
- CIRTS (Computer Item Recognition Training Software)
- Compact design
- Ultra-thin object scanning using micro photo sensors
- Self Diagnostics
- Organic / Inorganic Stripping (Material Discrimination)
- Automatic threat and density alert
- Network ready
- Image archiving
- TIP – Threat Image Projection
