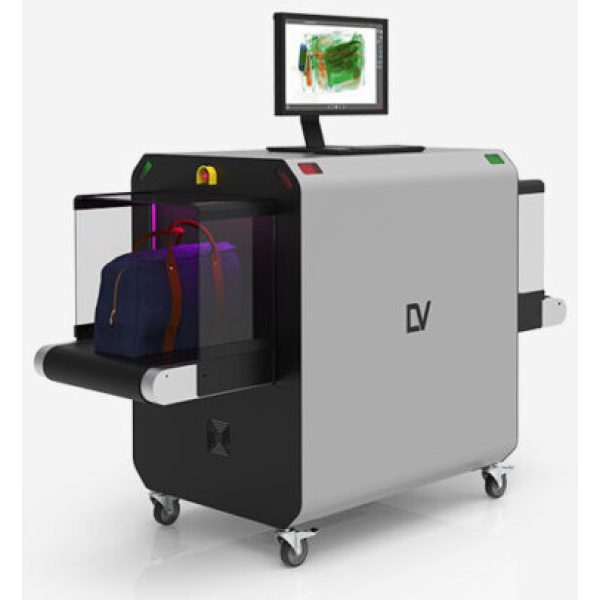

LINEV Systems BV 6045
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
610
Tunnel Height (mm)
450
Conveyor
Conveyor Height (mm)
713
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
180
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
1.0
Wire Resolution (mm)
40
Steel Penetration (mm)
37
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
2140 x 845 x 1325
Weight (kg)
480
Electrical
Power
230 VAC ± 10% / 120 VAC ± 5%, 50/60 Hz, Max 0,9 kVA
Software
Software / OS
Linux
Options
Options
Artificial Intelligence software system for automated detection of firearms, knives and ammunition, Touchscreen operation functionality, Ability to connect to a local network Remote operator position (up to 25 m), Monitor top position, Rigid type packaging
Features
Features (20)
  • Modular Architecture
  • Colour Solutions
  • Telemetry (predictive analytics)
  • Automatic identification of suspicious objects (drugs
  • explosives)
  • Availability of 7
  • colour and infinite colour palettes of images
  • Automatic selection of suspicious objects using Zeff and optical density
  • TIP software for monitoring operator vigilance
  • Secure login
  • Multi-level user access
  • Viewing X-ray images from a previous session
  • Quick view of the last 10 images
  • Bi-directional scanning
  • Modes of operation with or without conveyor stop
  • Automatic diagnostics
  • Automatic warming up of the X-ray generator
  • Automatic storage of X-ray images
  • Baggage counter
  • Multilingual interface
