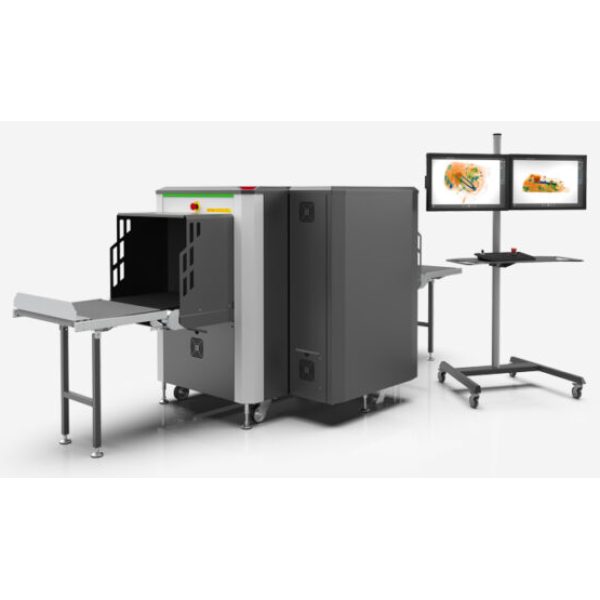

LINEV Systems BV 6045DV
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
620
Tunnel Height (mm)
450
Conveyor
Conveyor Height (mm)
700
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
1.0
Wire Resolution (mm)
40
Steel Penetration (mm)
37
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
2350 x 1350 x 1200
Weight (kg)
800
Electrical
Power
230 VAC ± 10%/120 VAC ± 5%, 50/60 Hz, Max 1.2 kVA
Software
Software / OS
Linux
Options
Options
Artificial Intelligence software system for automated detection of firearms, knives and ammunition, Touchscreen operation functionality, Ability to connect to a local network Remote operator position (up to 25 m), Monitor top position, Rigid type packaging
Features
Features (7)
  • Dual-view technology
  • Artificial Intelligence software system for automated detection of firearms
  • knives and ammunition
  • Automatic identification of suspicious objects
  • Availability of 7-
  • colour and infinite colour palettes of images
  • Fault-tolerant configuration of the acquisition/analysis workstation
