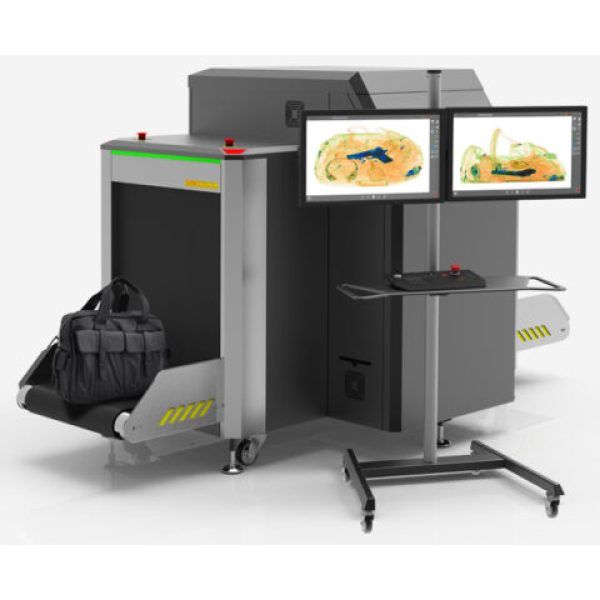

LINEV Systems — BV 7080DV
Checkpoint · Model brochure & technical specifications
Compare BV 7080DV against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
690
Tunnel Height (mm)
800
Conveyor
Conveyor Height (mm)
320
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
1.5
Wire Resolution (mm)
38
Steel Penetration (mm)
36
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
2800 x 1610 x 1650
Weight (kg)
895
Electrical
Power
230 VAC ± 10%/120 VAC ± 5%, 50/60 Hz, Max 1.4 kVA
Software
Software / OS
Linux
Options
Options
Artificial Intelligence software system for automated detection of firearms, knives and ammunition, Touchscreen operation functionality, Ability to connect to a local network Remote operator position (up to 25 m), Monitor top position, Rigid type packaging
Features
Features (7)
- Dual-view technology
- Automatic identification of suspicious objects (drugs
- explosives)
- Availability of 7
- colour and infinite colour palettes of images
- Fault-tolerant configuration of the acquisition/analysis workstation
- Quick start-up and shutdown
