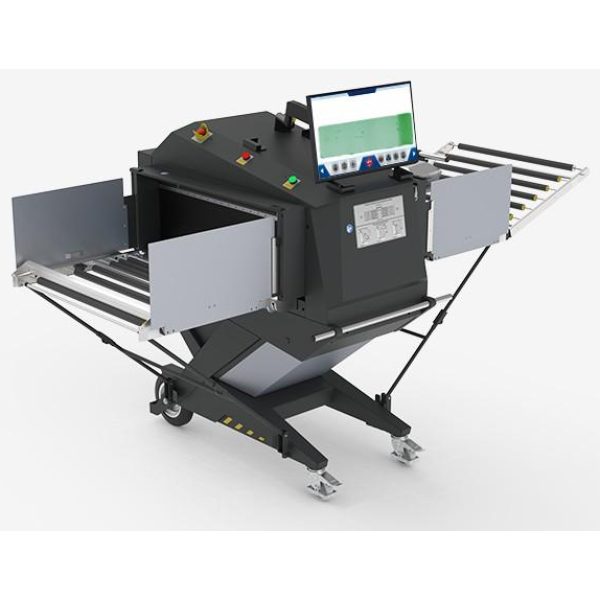

LINEV Systems — BV M.A.X
Mail and Small Parcel · Model brochure & technical specifications
Compare BV M.A.X against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
870
Tunnel Height (mm)
240
Conveyor
Conveyor Height (mm)
843
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
25
Generator
X-ray Voltage (kV)
100
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
1 x 0
Wire Resolution (mm)
40
Steel Penetration (mm)
16
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
4070 x 1500 x 1270
Weight (kg)
420
Electrical
Power
110-240 VAC, 50/60 Hz, Max 0.5 kVA
Software
Software / OS
Linux
Options
Options
Artificial Intelligence software system for automated detection of firearms, knives and ammunition, Touchscreen operation functionality, Ability to connect to a local network Remote operator position (up to 25 m), Monitor top position, Rigid type packaging
Features
Features (28)
- The automatic detection of the most common contraband
- Automated inspection process
- Compactness
- Fault-tolerant configuration of the acquisition/analysis workstation
- Perfect image quality
- Quick start-up and shutdown
- Real-time self-diagnostics
- Automatic selection of suspicious objects using Zeff and optical density
- Bi-directional scanning
- Secure login
- Multi-level user access
- Automatic diagnostics
- Automatic warming up of the X-ray generator
- Automatic storage of X-ray images
- Baggage counter
- Display of date/time
- Multilingual interface
- Service reports
- Inversion of colours
- Black and white display mode
- Edge enhancement
- Adjustable gamma correction
- Contrast optimization
- Display organic objects with atomic numbers Z7
- Z8
- Z9
- Zooming in on images up to 96x
- View archive images
