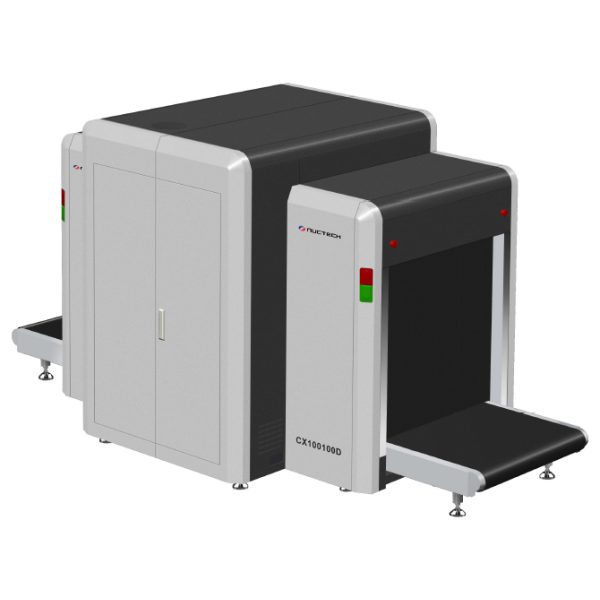

Nuctech — CX100100D
Hold Baggage · Model brochure & technical specifications
Compare CX100100D against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1010
Tunnel Height (mm)
1005
Conveyor
Conveyor Height (mm)
300
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
38
Steel Penetration (mm)
35
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
3595 x 1705 x 1835
Weight (kg)
1400
Electrical
Power
100VAC ~ 240VAC (-15% ~ +10%), 50 Hz/60Hz ±3Hz
Software
Software / OS
Windows
Options
Options
Explosives and drug auto detection
Features
Features (18)
- High image quality with wire resolution of 38 AWG and steel penetration of 35mm
- X-ray leakage around the equipment is close to natural background level
- Automatic detection and alarm of explosives and drugs
- Support stepwise
- continuous zoom and magnifier functions
- Images can be saved as BMP
- JPG and PNG
- Ergonomic keyboard and operator interface design
- Modular design and built-in diagnostic facility
- Explosives/narcotics detections
- high-density area alert
- threat image projection (TIP)
- Image enhancement and material classification
- Step/stepless zoom
- up to 64 times enlargement
- Preceding images recallable
- Up to 100
- image storage capability
