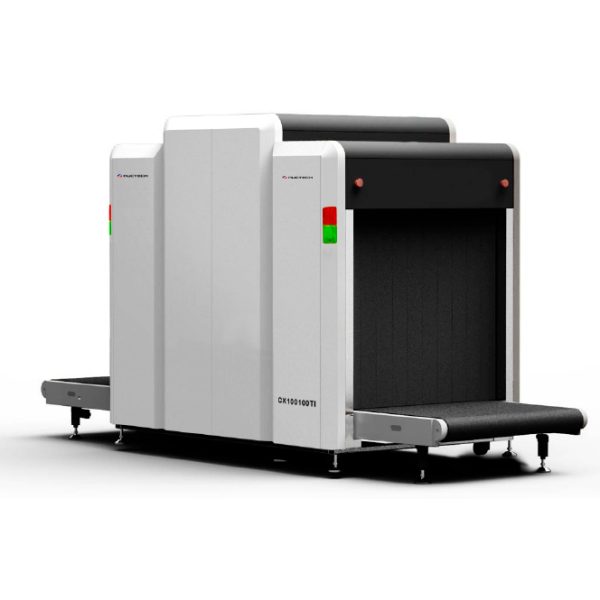

Nuctech — CX100100TI
Hold Baggage · Model brochure & technical specifications
Compare CX100100TI against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1010
Tunnel Height (mm)
1005
Conveyor
Conveyor Height (mm)
300
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
38
Steel Penetration (mm)
35
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
3600 x 1300 x 1790
Weight (kg)
1060
Electrical
Power
100VAC ~ 240VAC (-15% ~ +10%), 50 Hz/60Hz ±3Hz, 1.0kVA
Software
Software / OS
Windows
Options
Options
Explosives/narcotics detections, high-density area alert, threat image projection (TIP)
Features
Features (21)
- Automatic detection and alarm of explosives and drugs
- TIP (Threat Image Projection) for operator performance monitoring and training
- Support stepwise
- continuous and magnifier functions to enlarge images
- Images can be saved as BMP
- JPG
- GIF and TIFF and transferred to USB storage devices
- Ergonomic keyboard and user interface design
- Modular design and full built-in diagnostic facility
- High image quality with wire resolution of 38 AWG and steel penetration up to 35mm
- Advanced material classification: orange for organic
- blue for metal and green for mixed material
- Time/date display
- counters
- user management
- system-on/X-ray-on timers
- power on self test
- built-in diagnostic facilities
- dual-direction scanning
- system log
- system standby and training
