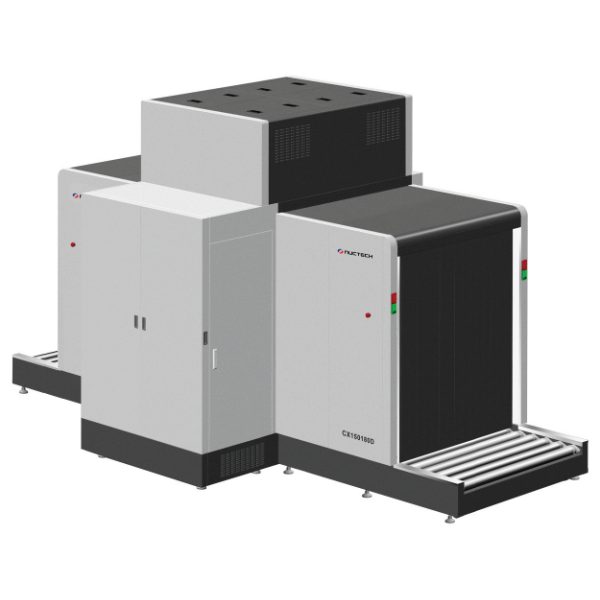

Nuctech CX150180D
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1550
Tunnel Height (mm)
1806
Conveyor
Conveyor Height (mm)
330
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
3000
Generator
X-ray Voltage (kV)
200
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
38
Steel Penetration (mm)
50
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
5736 x 2802 x 3151
Weight (kg)
4300
Electrical
Power
220VAC ~ 240VAC (-15% ~ +10%), 50Hz/ 60Hz ±3Hz, 2.5kVA
Software
Software / OS
Windows
Options
Options
Explosives/narcotics detections, high-density area alert, threat image projection (TIP)
Features
Features (8)
  • Excellent image performance with steel penetration up to 50mm
  • dual-view x-ray imaging design
  • heavy-duty roller conveyor with load capacity up to 3000kg
  • outstanding accuracy of atomic number signatures
  • ergonomic customizable keyboards
  • friendly and easy-to-use software interface
  • powerful network capabilities
  • hermetic radiation safety protection
