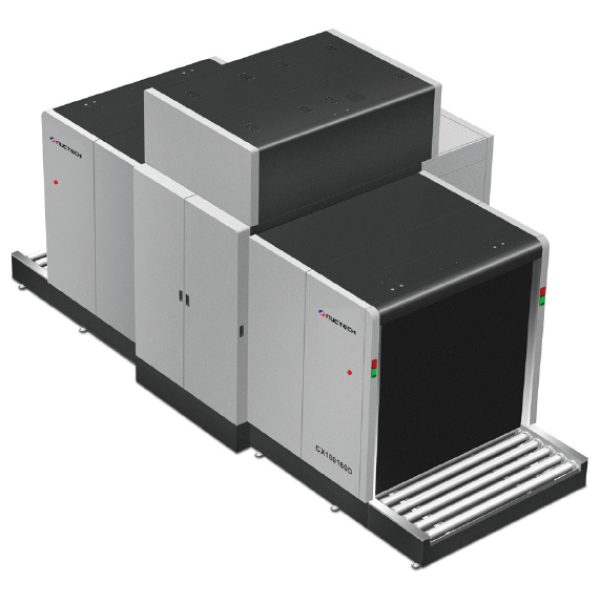

Nuctech — CX180180D
Cargo · Model brochure & technical specifications
Compare CX180180D against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1850
Tunnel Height (mm)
1806
Conveyor
Conveyor Height (mm)
330
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
2000
Generator
X-ray Voltage (kV)
200
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
38
Steel Penetration (mm)
50
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
6336 x 3102 x 3153
Weight (kg)
5315
Electrical
Power
220VAC ~ 240VAC (-15% ~ +10%)，50 Hz/60Hz ±3Hz
Software
Software / OS
Windows
Options
Options
Explosives/narcotics detections, high-density area alert, threat image projection (TIP)
Features
Features (13)
- Automatic detection and alarm of explosives and drugs
- Support stepwise
- continuous and local zoom functions
- Images can be saved as BMP
- JPG and PNG
- Ergonomic keyboard and user interface design
- Modular design and built-in diagnostic facility
- State-of-the-art technology for superior image quality
- dual view design
- wire resolution of 38 AWG
- steel penetration up to 50 mm
- less than 1µGy/h X-ray leakage
- guaranteed for high speed film up to ASA/ISO1600 (33DIN)
