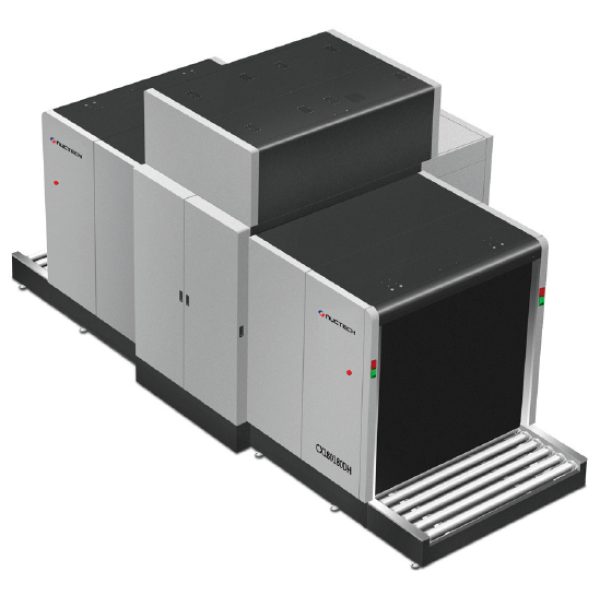

Nuctech CX180180DH
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1850
Tunnel Height (mm)
1806
Conveyor
Conveyor Height (mm)
330
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
5000
Generator
X-ray Voltage (kV)
200
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
34
Steel Penetration (mm)
70
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
6336 x 3102 x 3153
Weight (kg)
5770
Electrical
Power
220VAC ~ 240VAC (-15% ~ +10%), 50 Hz/60Hz ±3Hz, 4.5kVA
Software
Software / OS
Windows
Options
Options
Explosives/narcotics detections, high-density area alert, threat image projection (TIP)
Features
Features (12)
  • Automatic detection and alarm of explosives and drugs
  • Support stepwise
  • continuous and local zoom functions
  • Images can be saved as BMP
  • JPG and PNG
  • Ergonomic keyboard and user interface design
  • Modular design and built-in diagnostic facility
  • State-of-the-art technology for superior image quality
  • Dual-view dual-energy X-ray inspection
  • Explosives/narcotics detections
  • High-density area alert
  • Threat image projection (TIP)
