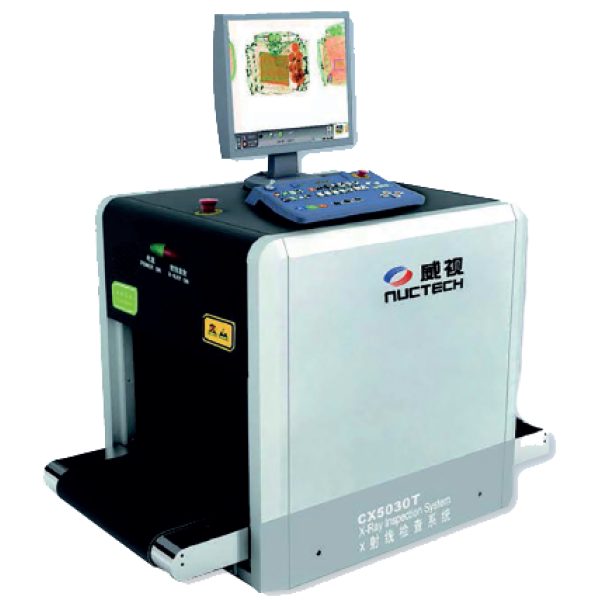

Nuctech CX5030T
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
534
Tunnel Height (mm)
328
Conveyor
Conveyor Height (mm)
160
Conveyor Speed (m/s)
0.2
Load Capacity (kg)
60
Generator
X-ray Voltage (kV)
100
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
16
Generator
Cooling Type
Sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
1317 x 770 x 790
Weight (kg)
190
Electrical
Power
220VAC/110VAC (-15% ~ +10%); 50Hz/60Hz, ±3Hz
Software
Software / OS
Windows
Options
Options
High-density area alert, Explosives / drugs detection, Threat image projection (TIP), Network kit
Features
Features (12)
  • High image quality with wire resolution of 40AWG and steel penetration up to 16mm
  • Compact structure and light weight of approximately 190kg
  • X-ray leakage around the equipment is close to natural background level
  • Automatic detection and alarm of explosives and drugs
  • TIP (Threat Image Projection) for operator performance monitoring and training
  • Support stepwise
  • continuous and magnifier functions
  • Images can be saved as BMP
  • JPG
  • PNG and TIFF
  • Ergonomic keyboard and user interface design
  • Modular design and built-in diagnostic facility
