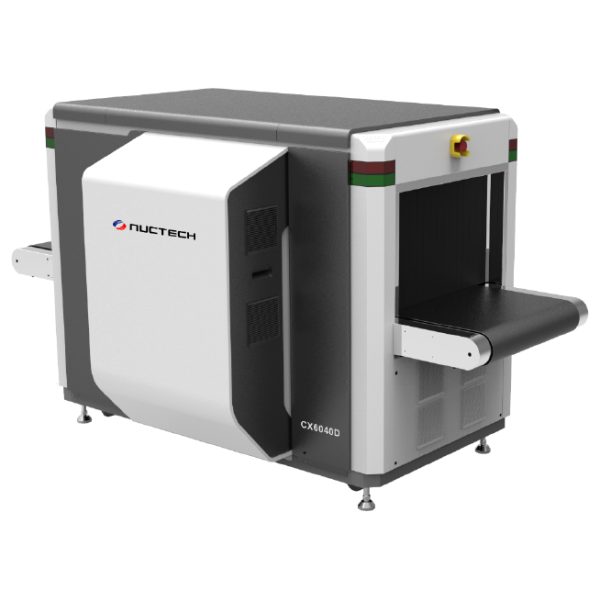

Nuctech — CX6040D
Checkpoint · Model brochure & technical specifications
Compare CX6040D against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
620
Tunnel Height (mm)
420
Conveyor
Conveyor Height (mm)
700
Conveyor Speed (m/s)
0.20
Load Capacity (kg)
160
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
40
Steel Penetration (mm)
38
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
2397 x 1277 x 1347
Weight (kg)
1000
Electrical
Power
100VAC ~ 240VAC (-15% ~ +10%), 50 Hz/60Hz ±3Hz, 1.2kVA
Software
Software / OS
Windows
Options
Options
Explosives and drug auto detection
Features
Features (26)
- High image quality with wire resolution of 40 AWG and steel penetration of 38mm
- X-ray leakage around the equipment is close to the natural background level
- which meets all published international health and safety standards
- Automatic detection and alarm of explosives and drugs
- Support stepwise
- continuous and local zoom functions to enlarge the scanning images in flexible and quick way
- Images can be saved as general image format
- e.g. BMP
- JPG and PNG
- and transferred to USB storage devices
- Ergonomic keyboard and user interface design ensure the efficiency and professional of the X-ray screening operation
- Modular design and construction combined with full built-in diagnostic facility guarantee the efficiency of equipment maintenance
- Dual view design
- images of each view will be shown on a dedicated monitor
- Explosives/narcotics detections
- high-density area alert
- threat image projection (TIP)
- Time/date display
- counters
- user management
- system-on/X-ray-on timers
- power on self test
- built-in diagnostic facilities
- dual-direction scanning
- system log
- system standby and training
