Rapiscan — 920CT

Checkpoint · Model brochure & technical specifications

Back to X-Compare
Compare 920CT against 209 other scanners Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
vs Gilardoni ARGO 640 DV vs LINEV Systems BV 6045DV vs Nuctech CX6040D
Open X-Compare

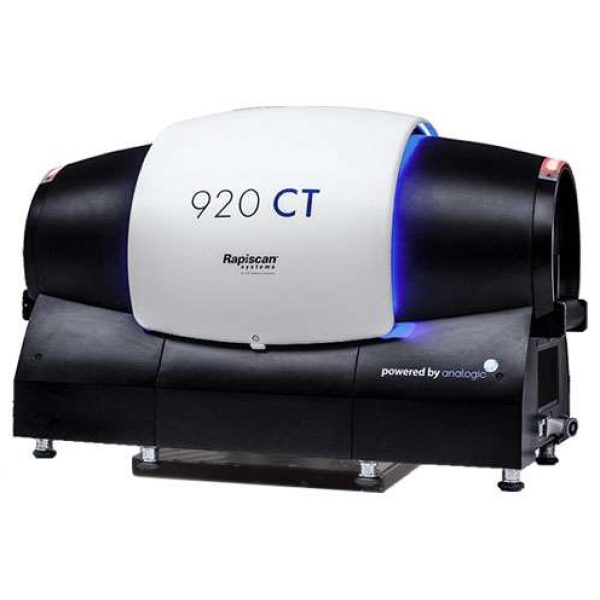

Rapiscan 920CT
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
620
Tunnel Height (mm)
420
Conveyor
Conveyor Height (mm)
840
Conveyor Speed (m/s)
0.15
Load Capacity (kg)
135
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
5
Generator(s)
1
Imaging
View(s)
CT
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
N/A
Steel Penetration (mm)
N/A
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
2700 x 1440 x 1750
Weight (kg)
1982
Electrical
Power
208/230 VAC, 20 Amps
Software
Software / OS
Windows OS
Options
Options
N/A
Features
Features (10)
  • Industry leading full 3D image full integration resolution
  • Contactless & bearing free gantry CT
  • Density threat alarm
  • Intuitive touchscreen workstation
  • Future proof technology
  • Cutting-edge dual-energy technology
  • Compact footprint
  • aesthetic design
  • Meets the most stringent global regulatory requirements
  • D Threat Image Projection (TIP)
