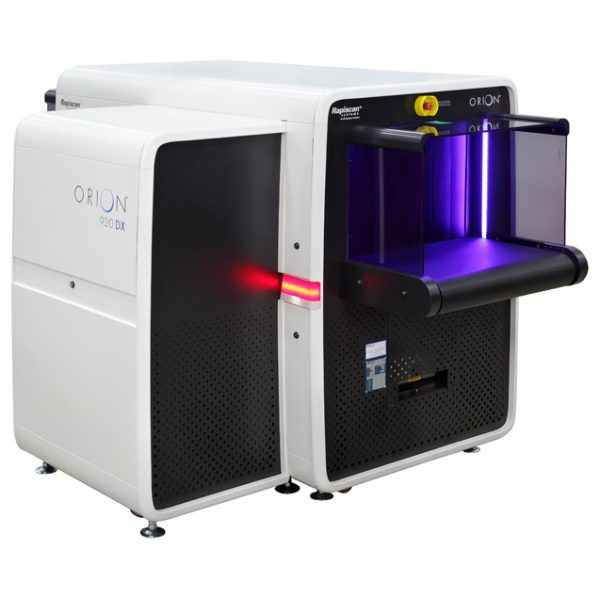

Rapiscan — 920DX
Checkpoint · Model brochure & technical specifications
Compare 920DX against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
640
Tunnel Height (mm)
430
Conveyor
Conveyor Height (mm)
813
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
165
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
41
Steel Penetration (mm)
41
Generator
Cooling Type
Sealed oil bath with forced air
Mechanical
Footprint (L×W×H) (mm)
2316 x 1503 x 1390
Weight (kg)
897
Electrical
Power
115/230 VAC ±10%, 60/50Hz
Software
Software / OS
Windows OS
Options
Options
Explosive threats, narcotics & density alerts Spectrum 4 17 Image processing functions SINERGY low density enhancement Dual Mode Z-effective CrystalClear™ Automatic, Enhanced Image Archiving Remote Status Monitoring Remote Archive Review Multi‐System Alarm Resolution Network Multiplexing and Matrixing Tray Return System Compatible 13 Languages 64-bit Operating System
Features
Features (0)
N/A
