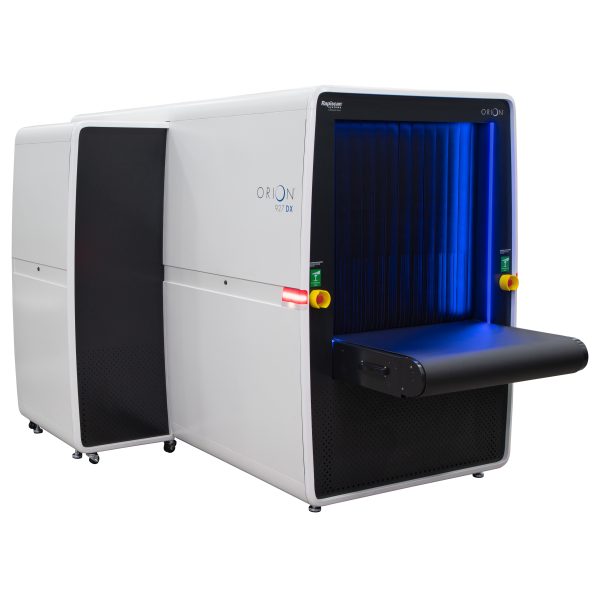

Rapiscan 927DX
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1010
Tunnel Height (mm)
1010
Conveyor
Conveyor Height (mm)
850
Conveyor Speed (m/s)
0.2 + 0.35 + 0.5
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
42
Steel Penetration (mm)
39
Generator
Cooling Type
Sealed oil bath with forced air
Mechanical
Footprint (L×W×H) (mm)
3855 x 1969 x 2008
Weight (kg)
2156
Electrical
Power
115/230 VAC ±10%, 60/50Hz
Software
Software / OS
Windows OS
Options
Options
Explosive threats, narcotics & density alerts Spectrum 4 17 Image processing functions SINERGY low density enhancement Dual Mode Z-effective CrystalClear™ Automatic, Enhanced Image Archiving Remote Status Monitoring Remote Archive Review Multi‐System Alarm Resolution Network Multiplexing and Matrixing 13 Languages 64-bit Operating System
Features
Features (10)
  • Explosive threats
  • narcotics & density alerts
  • Spectrum 4
  • Image processing functions
  • SINERGY low density enhancement
  • Dual Mode Z-effective
  • Remote Status Monitoring
  • Multi-System Alarm Resolution Network
  • Multiplexing and Matrixing
  • Languages
