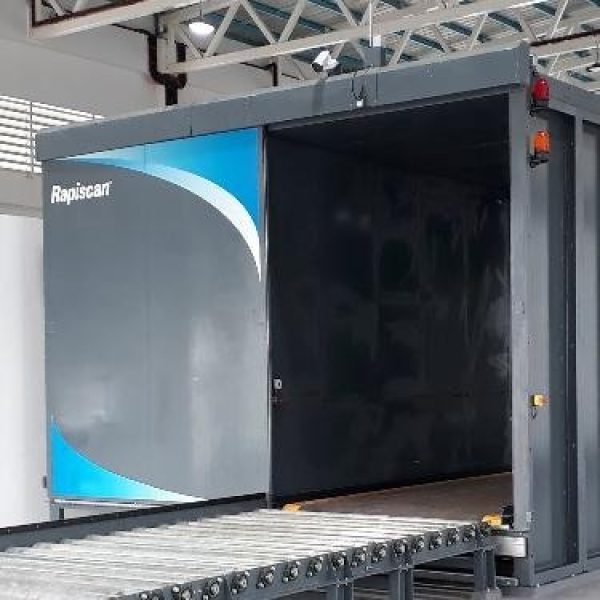

Rapiscan — EAGLE A25
Vehicle & Freight · Model brochure & technical specifications
Compare EAGLE A25 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
N/A
Recommended Max Vehicle/Object Size (mm)
2.5 x 8 x 2 x 3 x 9 x 10 x 5 x 16 x 5
Vehicle Throughput
Scanning Speed (km/hr)
0.3 x 0.4
Inspection Throughput (vehicles/hour)
30
Setup Time
15
Installation Time
N/A
Crew Requirement
One inspector
Vehicle Imaging
Linac / Nominal Energy (MeV)
2.5
Spatial Resolution
1.5
Radiation Safety
Dose to Driver (microSv)
N/A
Dose to Crew (microSv)
0.5
Dose to Cargo / Object per Scan (microSv)
5
Operating Environment
Operating Temperature (C)
-10 x 40 x 14 x 104
Relative Humidity
N/A
Mechanical
Footprint (L×W×H) (mm)
22.2 x 72 x 10 x 6.9 x 22 x 8 x 4.2 x 13 x 9
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
N/A
X-ray Current (mA)
N/A
Generator(s)
N/A
Imaging
View(s)
N/A
Performance
Steel Penetration (mm)
205
Software
Software / OS
N/A
Electrical
Power
50 Hz: 400 V, 63 A, 44 kVA
Options
Options
+55
Features
Features (5)
- Enclosed cabinet-style system for scanning air cargo
- High-energy X-ray imaging with three-color material discrimination for improved detection of threats and contraband
- Able to be integrated into air cargo handling system
- Integral shielding reduces radiation exclusion zone to system boundary
- Can operate standalone or integrated into automated air cargo handling system
