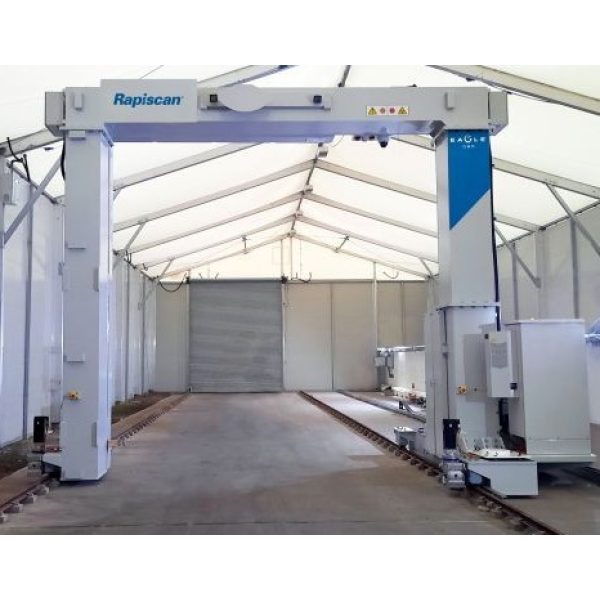

Rapiscan — EAGLE G60
Vehicle & Freight · Model brochure & technical specifications
Compare EAGLE G60 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
4.7 x 15 x 5 x 4.8 x 15 x 9 x 30 x 98 x 5 x 22 x 72 x 0.4
Recommended Max Vehicle/Object Size (mm)
2.8 x 9 x 2 x 4.7 x 15 x 5 x 22 x 72 x 2
Vehicle Throughput
Scanning Speed (km/hr)
0.4 x 16 x 3 x 8
Inspection Throughput (vehicles/hour)
20 x 100
Setup Time
N/A
Installation Time
N/A
Crew Requirement
Scan coordinator and image analyst
Vehicle Imaging
Linac / Nominal Energy (MeV)
6
Spatial Resolution
60 x 4 x 4 x 60 x 4 x 4 x 60 x 3 x 3 x 60 x 5 x 5
Radiation Safety
Dose to Driver (microSv)
0.25
Dose to Crew (microSv)
0.5
Dose to Cargo / Object per Scan (microSv)
20
Operating Environment
Operating Temperature (C)
-10 x 40 x 14 x 104
Relative Humidity
N/A
Mechanical
Footprint (L×W×H) (mm)
8.7 x 28 x 7 x 5.5 x 18 x 1 x 3.6 x 11 x 10
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
N/A
X-ray Current (mA)
N/A
Generator(s)
N/A
Imaging
View(s)
N/A
Performance
Steel Penetration (mm)
380
Software
Software / OS
N/A
Electrical
Power
50 Hz: 400 V, 63 A, 44 kVA; 60 Hz: 220 V, 125 A, 48 kVA
Options
Options
60 x 60 x -40 x +55
Features
Features (9)
- Reliable 6 MeV X-ray imaging system
- High-quality
- dual-energy imaging for detection of explosives
- weapons
- and contraband
- Multiple configurations and operational modes
- Gantry and portal mode operation
- Integrated peripheral devices
- Integrated radiation detection
