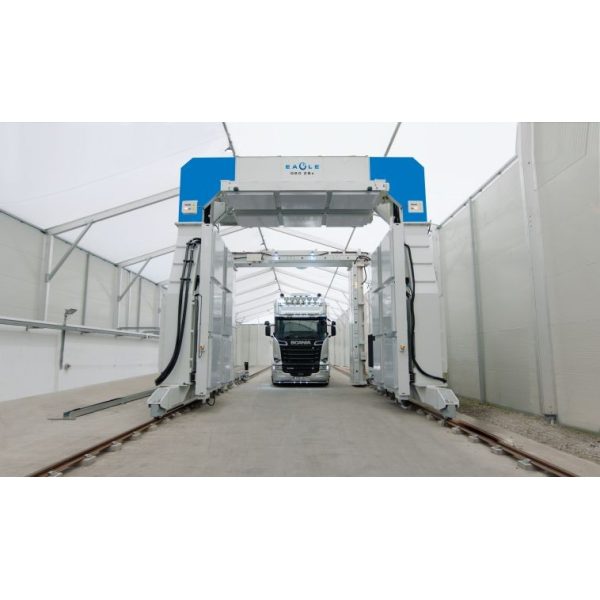

Rapiscan — EAGLE G60 ZBX
Vehicle & Freight · Model brochure & technical specifications
Compare EAGLE G60 ZBX against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
N/A
Recommended Max Vehicle/Object Size (mm)
2.8 x 9 x 2 x 5 x 16 x 5 x 20 x 65 x 7
Vehicle Throughput
Scanning Speed (km/hr)
0.2 x 0.4 x 0.8 x 3 x 8
Inspection Throughput (vehicles/hour)
20 x 80
Setup Time
N/A
Installation Time
N/A
Crew Requirement
Scan coordinator and image analyst
Vehicle Imaging
Linac / Nominal Energy (MeV)
6
Spatial Resolution
60 x 4 x 4 x 60 x 3 x 3 x 60 x 4 x 4 x 60 x 5 x 5
Radiation Safety
Dose to Driver (microSv)
0.25
Dose to Crew (microSv)
0.5
Dose to Cargo / Object per Scan (microSv)
20
Operating Environment
Operating Temperature (C)
-10 x 40 x 14 x 104
Relative Humidity
N/A
Mechanical
Footprint (L×W×H) (mm)
9.8 x 32 x 2 x 8.1 x 26 x 7 x 6.8 x 22 x 4
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
N/A
X-ray Current (mA)
N/A
Generator(s)
N/A
Imaging
View(s)
Three views (left, right, top)
Performance
Steel Penetration (mm)
380
Software
Software / OS
N/A
Electrical
Power
N/A
Options
Options
-40 x +55
Features
Features (3)
- High-quality transmission imaging with three-color material discrimination
- Z Backscatter imaging for enhanced detection of organic threats and contraband
- Multiple views for detailed inspection
