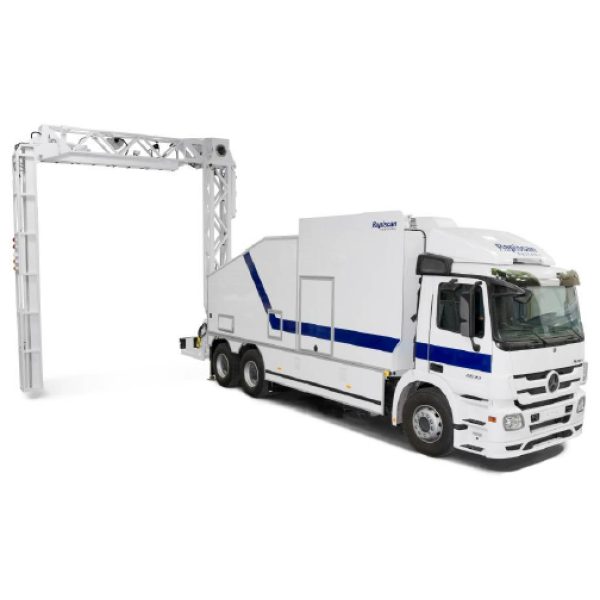

Rapiscan — EAGLE M60
Vehicle & Freight · Model brochure & technical specifications
Compare EAGLE M60 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
4.6 x 2.8
Recommended Max Vehicle/Object Size (mm)
5
Vehicle Throughput
Scanning Speed (km/hr)
0.4 x 1.44 x 5
Inspection Throughput (vehicles/hour)
20 x 100
Setup Time
30
Installation Time
N/A
Crew Requirement
Two onboard inspectors; optionally a third inspector can be accommodated
Vehicle Imaging
Linac / Nominal Energy (MeV)
6
Spatial Resolution
N/A
Radiation Safety
Dose to Driver (microSv)
N/A
Dose to Crew (microSv)
N/A
Dose to Cargo / Object per Scan (microSv)
N/A
Operating Environment
Operating Temperature (C)
N/A
Relative Humidity
N/A
Mechanical
Footprint (L×W×H) (mm)
N/A
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
N/A
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
N/A
Performance
Steel Penetration (mm)
N/A
Software
Software / OS
Rapiscan Cargo Viewer software on Windows PC workstations
Electrical
Power
Onboard electric generator; optional shore power operation
Options
Options
Drive-thru portal scan mode; drive-thru CabScan™ mode; third onboard inspector; larger inspection tunnel; operator assist tools; material separation technology with optional dual-energy X-ray generator; gamma or gamma and neutron radiation detection integrated with X-ray scan; automated capture of license plate and/or container number; radiation exclusion zone infrared fence; shore power operation; cold and/or hot weather package for expanded operational environment
Features
Features (12)
- MV X-ray imaging system
- material separation technology (optional)
- large object scanning capability
- mobile unit meets local road regulations
- two onboard inspectors
- drive-by scanning of stationary
- unoccupied vehicles
- continuously scan multiple objects
- industry leading X-ray imaging quality
- easy-to-use Rapiscan Cargo Viewer software
- meets radiation safety standards
- easy to maintain
