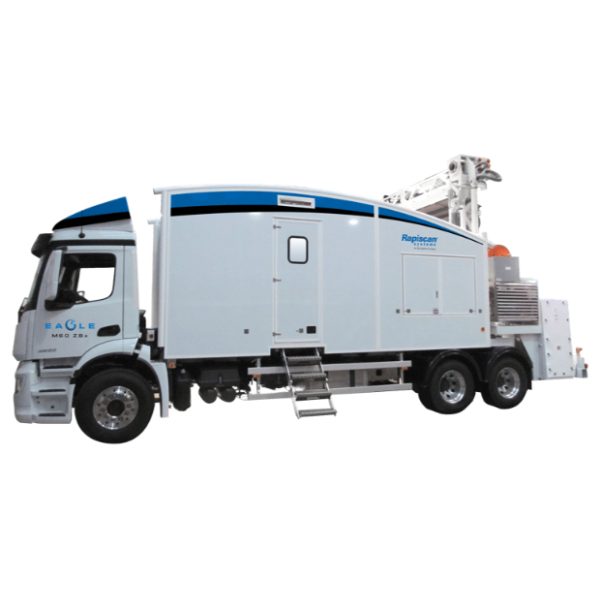

Rapiscan — EAGLE M60 ZBX
Vehicle & Freight · Model brochure & technical specifications
Compare EAGLE M60 ZBX against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
N/A
Recommended Max Vehicle/Object Size (mm)
N/A
Vehicle Throughput
Scanning Speed (km/hr)
0.13 x 0.26 x 0.4 x 3 x 8
Inspection Throughput (vehicles/hour)
70
Setup Time
20
Installation Time
N/A
Crew Requirement
Minimum of two operators (driver and analyst); ground guide and additional analysts optional
Vehicle Imaging
Linac / Nominal Energy (MeV)
6
Spatial Resolution
4 x 4
Radiation Safety
Dose to Driver (microSv)
0.25
Dose to Crew (microSv)
0.5
Dose to Cargo / Object per Scan (microSv)
10
Operating Environment
Operating Temperature (C)
-10 x 40 x 14 x 104
Relative Humidity
N/A
Mechanical
Footprint (L×W×H) (mm)
11.0 x 36 x 1 x 2.5 x 8 x 2 x 4.0 x 13 x 1 x 11.0 x 36 x 1 x 8.0 x 26 x 3 x 5.9 x 19 x 4
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
N/A
X-ray Current (mA)
N/A
Generator(s)
N/A
Imaging
View(s)
N/A
Performance
Steel Penetration (mm)
330
Software
Software / OS
N/A
Electrical
Power
50 Hz: 400 V, 63 A, 44 kVA; 60 Hz: 220 V, 125 A, 48 kVA
Options
Options
-40 x +55
Features
Features (7)
- High-quality imaging with material discrimination
- Z Backscatter imaging for enhanced detection of organic threats and contraband
- Multiple scan modes for maximum flexibility
- Drive-by mode
- Z Backscatter-only mode
- optional portal and CabScan modes
- Bi-directional scan direction in drive-by mode
