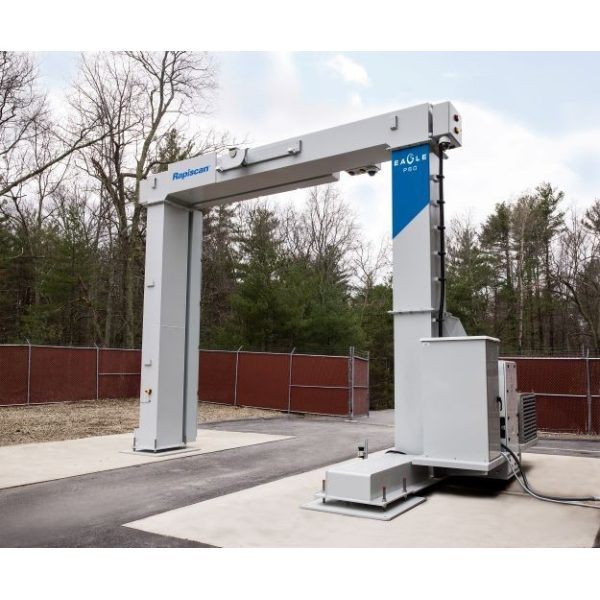

Rapiscan — EAGLE P60
Vehicle & Freight · Model brochure & technical specifications
Compare EAGLE P60 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
4.6 x 4.7
Recommended Max Vehicle/Object Size (mm)
2.8 x 4.6
Vehicle Throughput
Scanning Speed (km/hr)
3 x -8
Inspection Throughput (vehicles/hour)
N/A
Setup Time
15
Installation Time
N/A
Crew Requirement
2
Vehicle Imaging
Linac / Nominal Energy (MeV)
6
Spatial Resolution
10 x 5
Radiation Safety
Dose to Driver (microSv)
0.25
Dose to Crew (microSv)
0.5
Dose to Cargo / Object per Scan (microSv)
20
Operating Environment
Operating Temperature (C)
-10 x +40 x -40 x +55
Relative Humidity
5 x 95
Mechanical
Footprint (L×W×H) (mm)
3.4 x 8.4 x 5.7
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
N/A
X-ray Current (mA)
N/A
Generator(s)
N/A
Imaging
View(s)
N/A
Performance
Steel Penetration (mm)
340
Software
Software / OS
N/A
Electrical
Power
N/A
Options
Options
-40 x +55
Features
Features (4)
- Fully Automated Scanning Operation
- Material Separation Technology
- Integrated Gamma Radiation detection
- Integrated Gamma and Neutron Radiation detection
