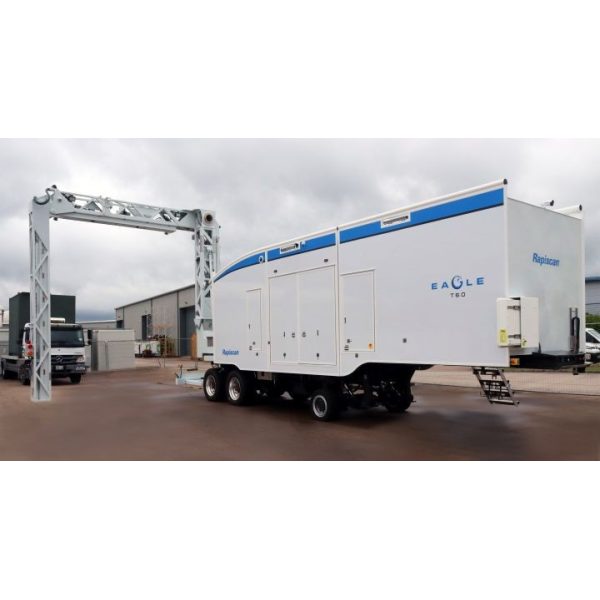

Rapiscan — EAGLE T60
Vehicle & Freight · Model brochure & technical specifications
Compare EAGLE T60 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
2.8 x 2800 x 5 x 5000
Recommended Max Vehicle/Object Size (mm)
2.8 x 2800 x 5 x 5000
Vehicle Throughput
Scanning Speed (km/hr)
0.13 x 0.26 x 0.4 x 3 x 8
Inspection Throughput (vehicles/hour)
80
Setup Time
20
Installation Time
N/A
Crew Requirement
4
Vehicle Imaging
Linac / Nominal Energy (MeV)
6
Spatial Resolution
4 x 4 x 60 x 60 x 3 x 3 x 60
Radiation Safety
Dose to Driver (microSv)
0.25
Dose to Crew (microSv)
0.5
Dose to Cargo / Object per Scan (microSv)
20
Operating Environment
Operating Temperature (C)
-10 x 40
Relative Humidity
N/A
Mechanical
Footprint (L×W×H) (mm)
11.9 x 11900 x 2.5 x 2500 x 4 x 4000 x 11.9 x 11900 x 8.3 x 8300 x 5.9 x 5900
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
N/A
X-ray Current (mA)
N/A
Generator(s)
N/A
Imaging
View(s)
N/A
Performance
Steel Penetration (mm)
330
Software
Software / OS
N/A
Electrical
Power
50 Hz: 400 V, 63 A, 44 kVA; 60 Hz: 220 V, 125 A, 48 kVA (shore power option)
Options
Options
-40 x +55
Features
Features (8)
- High-energy inspection system on trailer platform
- material discrimination
- autonomous drive-by mode
- optional portal mode
- CabScan mode
- integrated radiation detection
- on-board inspection office for up to four inspectors
- bi-directional scan direction in drive-by mode
