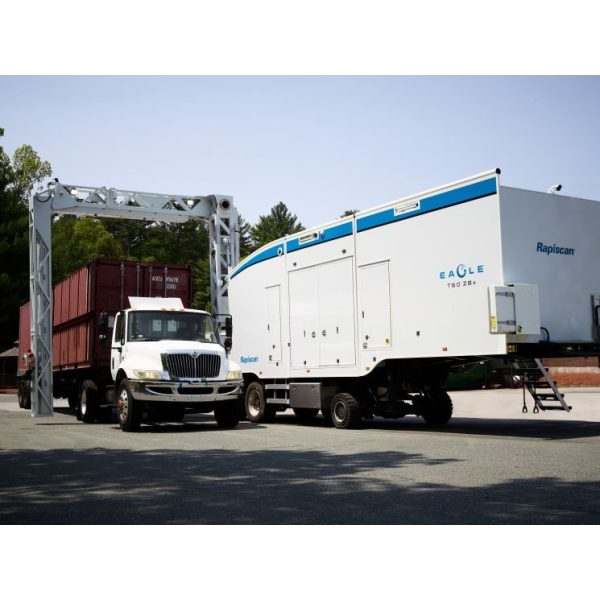

Rapiscan — EAGLE T60 ZBX
Vehicle & Freight · Model brochure & technical specifications
Compare EAGLE T60 ZBX against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
N/A
Recommended Max Vehicle/Object Size (mm)
60 x 2 x 25
Vehicle Throughput
Scanning Speed (km/hr)
0.13 x 0.26 x 0.4 x 3 x 8
Inspection Throughput (vehicles/hour)
70
Setup Time
20
Installation Time
N/A
Crew Requirement
4
Vehicle Imaging
Linac / Nominal Energy (MeV)
6
Spatial Resolution
4 x 4 x 60 x 60 x 3 x 3 x 60
Radiation Safety
Dose to Driver (microSv)
0.25
Dose to Crew (microSv)
0.5
Dose to Cargo / Object per Scan (microSv)
20
Operating Environment
Operating Temperature (C)
-10 x 40 x 14 x 104
Relative Humidity
N/A
Mechanical
Footprint (L×W×H) (mm)
11.9 x 39 x 1 x 2.5 x 8 x 2 x 4 x 13 x 1 x 11.9 x 39 x 1 x 8.3 x 27 x 3 x 5.9 x 19 x 4
Weight (kg)
N/A
Generator
X-ray Voltage (kV)
N/A
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
1
Performance
Steel Penetration (mm)
330
Software
Software / OS
N/A
Electrical
Power
50 Hz: 400 V, 63 A, 44 kVA; 60 Hz: 220 V, 125 A, 48 kVA
Options
Options
-40 x +55
Features
Features (8)
- High-quality imaging with material discrimination
- Z Backscatter imaging for enhanced detection of organic threats and contraband
- Easily towed and deployed with multiple scan modes for maximum flexibility
- Produces two X-ray images in a single scan: a high-energy transmission image and a Z Backscatter image
- Autonomous drive-by mode
- Optional portal and CabScan modes
- On-board inspection office for up to four inspectors
- Bi-directional scan direction in drive-by mode
