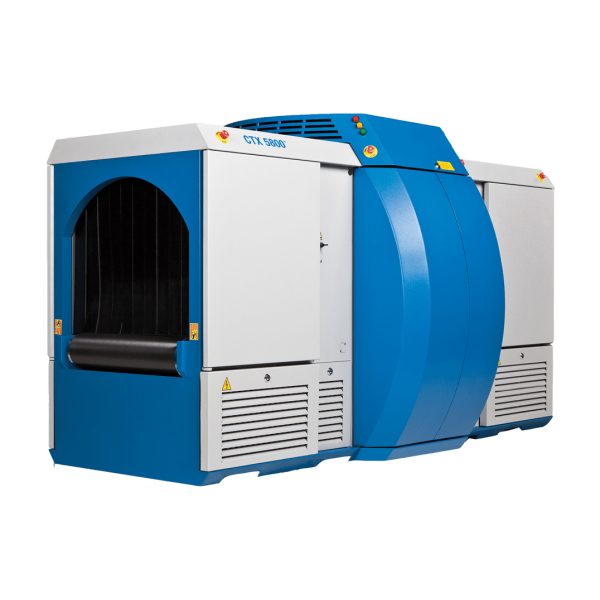

Smiths Detection — CTX 5800
Hold Baggage · Model brochure & technical specifications
Compare CTX 5800 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
750
Tunnel Height (mm)
400
Conveyor
Conveyor Height (mm)
617
Conveyor Speed (m/s)
0.14
Load Capacity (kg)
N/A
Generator
X-ray Voltage (kV)
170
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
CT
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
N/A
Steel Penetration (mm)
N/A
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
1569 x 1550 x 2614
Weight (kg)
2074
Electrical
Power
200 - 240VAC, 50Hz/60Hz, 20Amps, Single Phase
Software
Software / OS
Linux
Options
Options
CT competence and design fully owned by Smiths Detection • High detection with low FAR • Easy integration into BHS • Multiplexing solutions with intuitive and simplified user interface • Serviceability and maintainability • Lightweight and compact
Features
Features (6)
- CT competence and design fully owned by Smiths Detection
- High detection with low FAR
- Easy integration into BHS
- Multiplexing solutions with intuitive and simplified user interface
- Serviceability and maintainability
- Lightweight and compact
