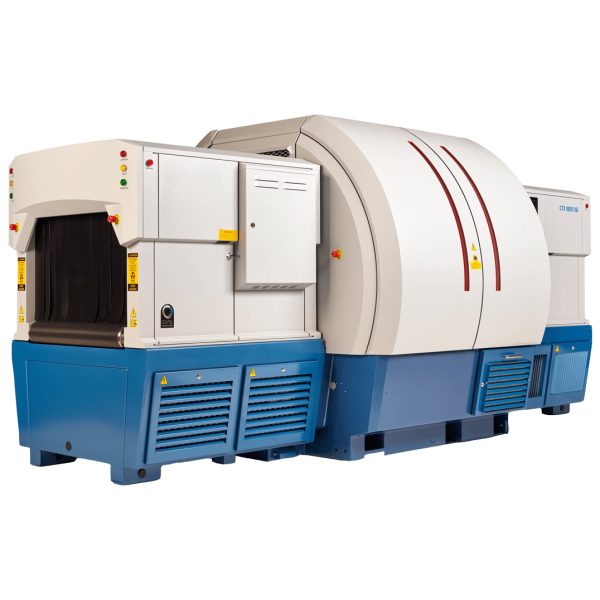

Smiths Detection — CTX 9800
Hold Baggage · Model brochure & technical specifications
Compare CTX 9800 against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Tunnel
Tunnel Width (mm)
1020
Tunnel Height (mm)
425
Conveyor
Conveyor Height (mm)
889
Conveyor Speed (m/s)
0.5
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
170
X-ray Current (mA)
5
Generator(s)
1
Imaging
View(s)
CT
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
N/A
Steel Penetration (mm)
N/A
Generator
Cooling Type
N/A
Mechanical
Footprint (L×W×H) (mm)
4803 x 2400 x 2177
Weight (kg)
6713
Electrical
Power
380V 50Hz, 400V 50Hz or 480V 60Hz, 40 Amp, 3-phase ∆ + PE; max 11.5kVA at 0.5m/s; 13 kVA at 0.3m/s
Software
Software / OS
Linux
Options
Options
Integration with totes (ECAC and TSA certified for select totes)
Features
Features (8)
- High-resolution 3-dimensional (3-D) imagery
- precise algorithmic calculations
- dual-energy organic/inorganic image capabilities
- predictive analytics tools for preventive maintenance
- ECAC EDS Standard 3 approved
- TSA certified
- CAAC certified
- IPMO certified
