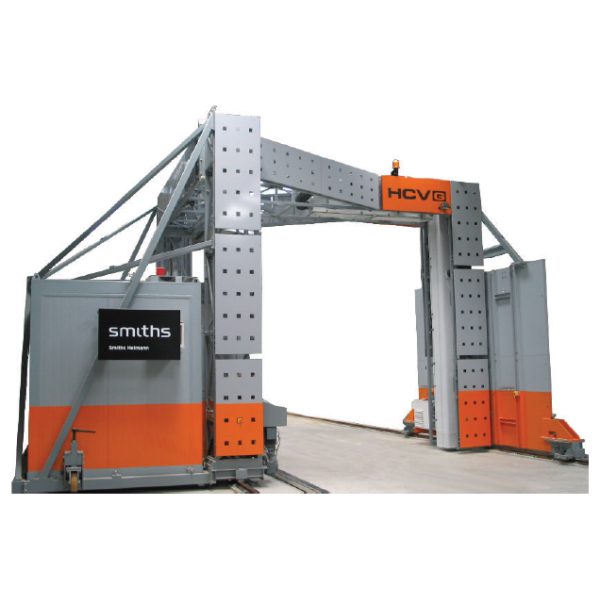

Smiths Detection — HCVG
Vehicle & Freight · Model brochure & technical specifications
Compare HCVG against 209 other scanners
Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
Open X-Compare
Brochure PDF locked
Login to preview the full document.
Login to unlock
Vehicle Dimensions
Scan Area Dimensions (mm)
11000 x 3600 6500
Recommended Max Vehicle/Object Size (mm)
4700 x 3500 x 19000
Vehicle Throughput
Scanning Speed (km/hr)
1.44
Inspection Throughput (vehicles/hour)
23
Setup Time
N/A
Installation Time
1,008
Crew Requirement
2
Vehicle Imaging
Linac / Nominal Energy (MeV)
4 - 6
Spatial Resolution
N/A
Radiation Safety
Dose to Driver (microSv)
N/A
Dose to Crew (microSv)
N/A
Dose to Cargo / Object per Scan (microSv)
N/A
Operating Environment
Operating Temperature (C)
-20°C to +40°C
Relative Humidity
Up to 100%
Mechanical
Footprint (L×W×H) (mm)
11000 x 31000 x 6500
Weight (kg)
27000
Generator
X-ray Voltage (kV)
N/A
X-ray Current (mA)
N/A
Generator(s)
N/A
Imaging
View(s)
1
Performance
Steel Penetration (mm)
400
Software
Software / OS
Linux
Electrical
Power
60 kVA
Options
Options
iCmore radioactivity gamma and neutron detection; Radiation protection concrete walls and shielding doors; Operator bungalow air conditioned with natural lighting; Two-vehicle scan; Various image and check-in/out workstations
Features
Features (9)
- High throughput up to 23 trucks per hour
- Steel penetration up to 400 mm @ 6MeV
- Small footprint and security perimeter
- Advanced viZual technology with organic/inorganic material discrimination and colorization
- Modular design
- Ease of operation
- Compliance with WHO
- ICRP 103
- EU & US regulations
