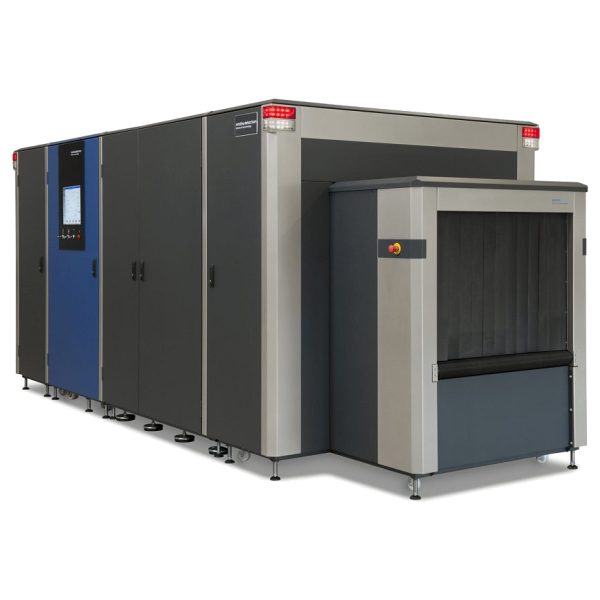

Smiths Detection HI SCAN 10080 XCT
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1070
Tunnel Height (mm)
810
Conveyor
Conveyor Height (mm)
700
Conveyor Speed (m/s)
0.5
Load Capacity (kg)
200
Generator
X-ray Voltage (kV)
N/A
X-ray Current (mA)
N/A
Generator(s)
3
Imaging
View(s)
CT
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
N/A
Steel Penetration (mm)
N/A
Generator
Cooling Type
External Chiller, ICC-A, ICC-W
Mechanical
Footprint (L×W×H) (mm)
5450 x 2300 x 2160
Weight (kg)
7650
Electrical
Power
400VAC + 10% / -15% 3-phase, 50Hz/60Hz ± 3Hz
Software
Software / OS
Linux
Options
Options
Optional iCMORE modules, External Chiller, ICC-A, ICC-W
Features
Features (6)
  • Dual-energy X-ray line scanner
  • full 3-D volumetric Computed Tomography (CT) imaging and reconstruction
  • High resolution images
  • Optional iCMORE modules for expanded detection capabilities
  • iCMORE Lithium Batteries
  • iCMORE Dangerous Goods
