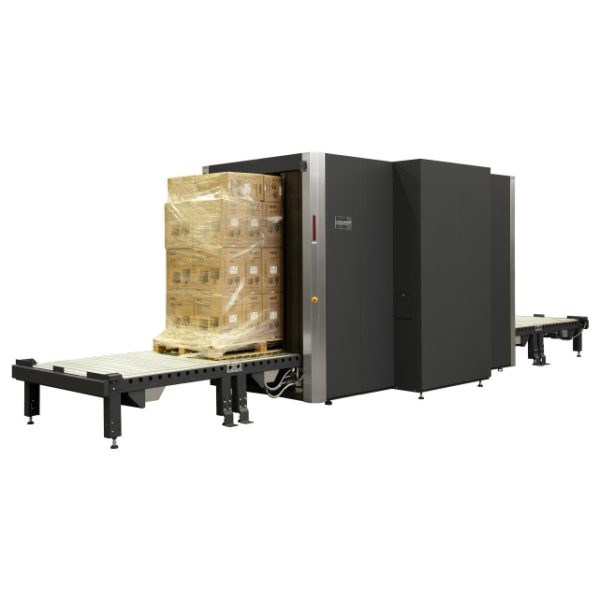

Smiths Detection HI SCAN 145180 2IS
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1470
Tunnel Height (mm)
1820
Conveyor
Conveyor Height (mm)
570
Conveyor Speed (m/s)
0.24
Load Capacity (kg)
5000
Generator
X-ray Voltage (kV)
160
X-ray Current (mA)
1
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
38
Steel Penetration (mm)
37
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
5637 x 2160 x 2545
Weight (kg)
3000
Electrical
Power
230 VAC +10% / -15% • 50 Hz / 60 Hz ± 3 Hz
Software
Software / OS
Linux
Options
Options
HI-TIP, HI-SPOT, SEN, XPlore, IMS (Image Store System - stores up to 100,000 images), Random ReCheck
Features
Features (15)
  • Dual view concept
  • excellent image presentation
  • rugged roller conveyor
  • meets TSA requirements
  • HI-MAT Plus technology
  • fading-in of date/time
  • luggage counter
  • user id-number
  • luggage marking system (acoustic)
  • display of operating mode
  • REVIEW-feature
  • zoom overview
  • free programmable keys
  • USB 2.0 interface
  • stepless zoom
