Smiths Detection — HI SCAN 180180 2IS PRO

Cargo · Model brochure & technical specifications

Back to X-Compare
Compare HI SCAN 180180 2IS PRO against 209 other scanners Full specs on this page are free to view. Register free to save comparisons and unlock the brochure PDF.
vs Astrophysics XIS 1818DV vs Astrophysics XIS 1818DV 320kV vs Hissco International HS1818 320
Open X-Compare

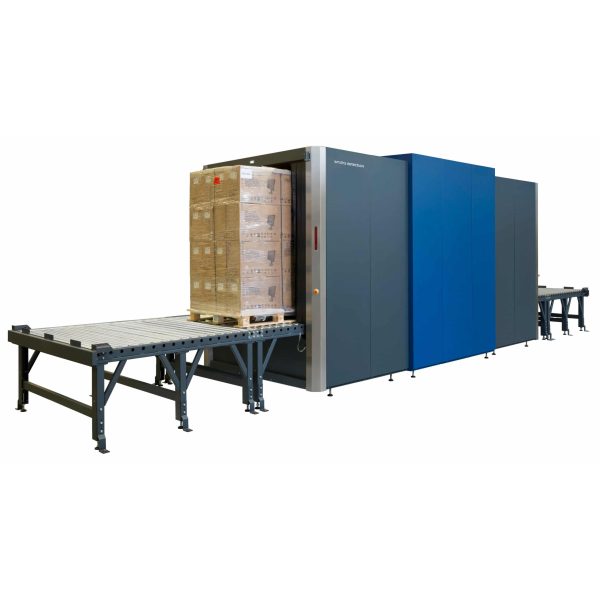

Smiths Detection HI SCAN 180180 2IS PRO
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
1810
Tunnel Height (mm)
1821
Conveyor
Conveyor Height (mm)
840
Conveyor Speed (m/s)
0.24
Load Capacity (kg)
5000
Generator
X-ray Voltage (kV)
300
X-ray Current (mA)
N/A
Generator(s)
2
Imaging
View(s)
Dual-View
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
37
Steel Penetration (mm)
75
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
7200 x 2650 x 2900
Weight (kg)
9000
Electrical
Power
400 VAC, 3 phases, 50 Hz / 60 Hz ± 3 Hz
Software
Software / OS
Linux
Options
Options
fading-in of date/time, object counter, user id-number, luggage marking system (acoustic), display of operating mode, REVIEW-feature (to recall previously visible image areas), zoom overview, free programmable keys, USB 2.0 interface, stepless zoom HI-SPOT, SEN, XPlore, IMS (Image Store System - stores up to 100,000 images), Random ReCheck
Features
Features (14)
  • Dual View X-ray system
  • excellent image presentation
  • rugged roller conveyors
  • small pitch roller conveyor
  • fading-in of date/time
  • object counter
  • user id-number
  • luggage marking system (acoustic)
  • display of operating mode
  • REVIEW-feature
  • zoom overview
  • free programmable keys
  • USB 2.0 interface
  • stepless zoom
