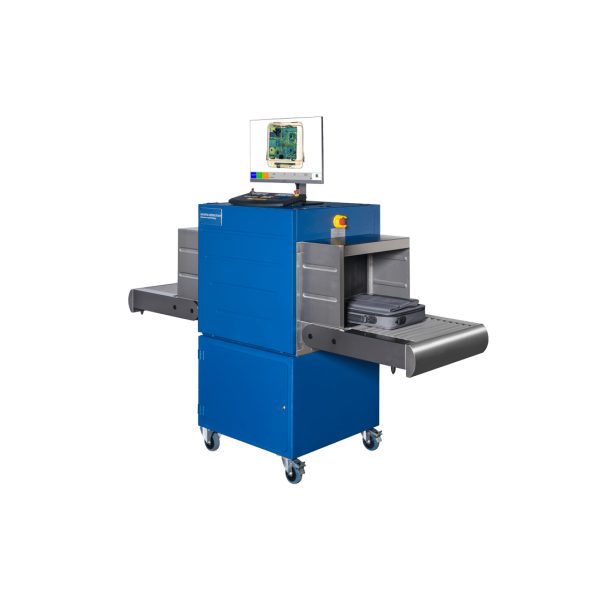

Smiths Detection HI SCAN 5030C
Brochure PDF locked Login to preview the full document. Login to unlock
Tunnel
Tunnel Width (mm)
532
Tunnel Height (mm)
328
Conveyor
Conveyor Height (mm)
800
Conveyor Speed (m/s)
0.22
Load Capacity (kg)
60
Generator
X-ray Voltage (kV)
100
X-ray Current (mA)
N/A
Generator(s)
1
Imaging
View(s)
Single
Performance
Image Resolution (lp/mm)
N/A
Wire Resolution (mm)
38
Steel Penetration (mm)
16
Generator
Cooling Type
Hermetically sealed oil bath
Mechanical
Footprint (L×W×H) (mm)
1200 x 705 x 726
Weight (kg)
188
Electrical
Power
100 V / 120 V / 230 V / 240 V AC (configurable); +10 % / -15 % • 50 Hz / 60 Hz ± 3
Software
Software / OS
Linux
Options
Options
display of date/time, software counters for: objects, alarms, operating hours, X-ray On hours, user ID-number, luggage marking system (acoustic), display of operating mode, REVIEW feature for up to 50 images, programmable priority keys, standard network interface, Automatic return mode, USB 3.0 interface, Printer support, IMS (Image Store System - stores up to 20,000 images), Full Reverse Mode
Features
Features (16)
  • Fast start-up
  • Lightweight and transportable
  • Future proof HiTraX 3 electronics
  • Organic Only Plus
  • Organic Stripping Plus
  • Organic Enhancement
  • HI-TIP Plus
  • SDTS
  • Optimized Background Contrast
  • Power-on Self-Test
  • Real-time Background Diagnosis
  • Real-time System Feedback
  • USB 3.0 interface
  • Printer support
  • IMS (Image Store System)
  • Full Reverse Mode
